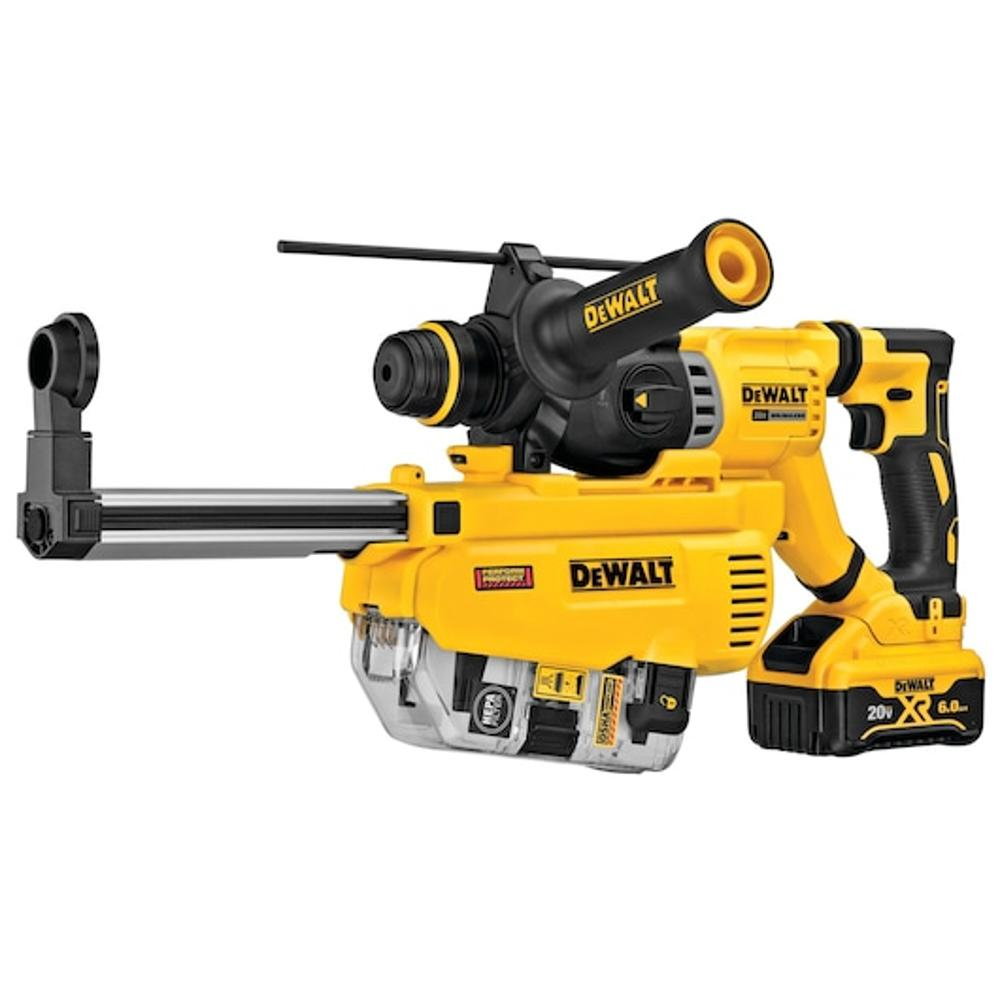

Dewalt 20V MAX XR Brushless 1-1/8" SDS PLUS D-Handle Rotary Hammer Kit

Mfr.: Dewalt
Item #: I070520
Mfr. #: DCH263R2DH
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $895.62
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

Conquer demanding concrete tasks with the 20V MAX* 1-1/8 in. SDS PLUS D-Handle Rotary Hammer, delivering a potent 3 Joules of impact energy. Its advanced brushless motor and robust German-engineered mechanism are engineered for swift drilling of large-diameter holes. Enhanced with SHOCKS ACTIVE VIBRATION CONTROL, this rotary hammer meets OSHA Table 1 compliance when paired with the DWH205DH On Board Extractor. For your ultimate convenience, this comprehensive kit includes (2) 20V MAX* XR 6Ah batteries, a charger, and a rugged kit box, ensuring easy transport to any jobsite.
  • Experience corded-level power without the cord, thanks to 3.0 joules of impact energy
  • Effortlessly attach and detach tools with the quick-release system
  • Maintain a slim profile with its compact inline design; the rotary hammer and dust collection measure only 3.72 inches wide when installed

Features

  • Capture dust efficiently with a durable, high-capacity clear dust box featuring a replaceable HEPA filter, trapping 99.97% of airborne particles 0.3 microns and larger
  • Achieve precise anchor hole depths with the easily adjustable depth stop
  • Illuminate dim work areas with the integrated LED on the dust extractor
  • Excel in a wide optimal drilling range from 1/4 in. to 3/4 in
  • Safeguard your work and the tool with the factory-set clutch, designed to reduce sudden, high-torque reactions if the bit jams

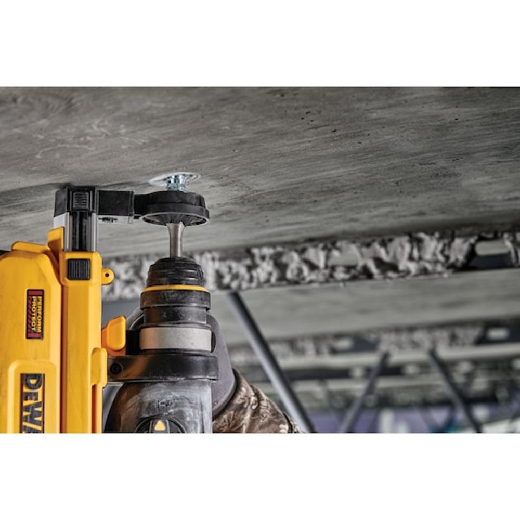

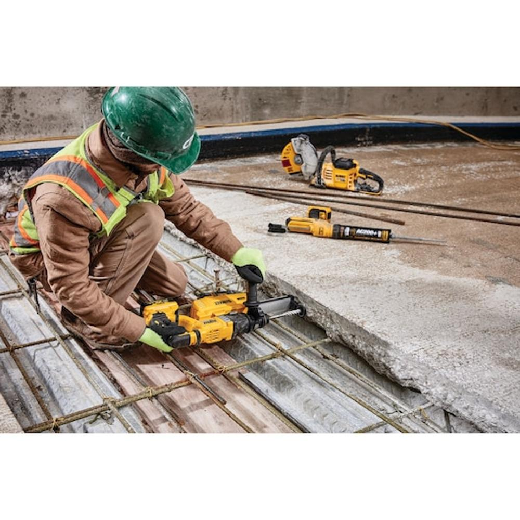

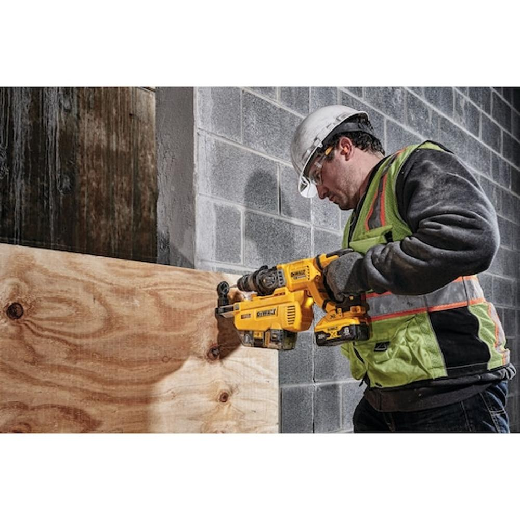

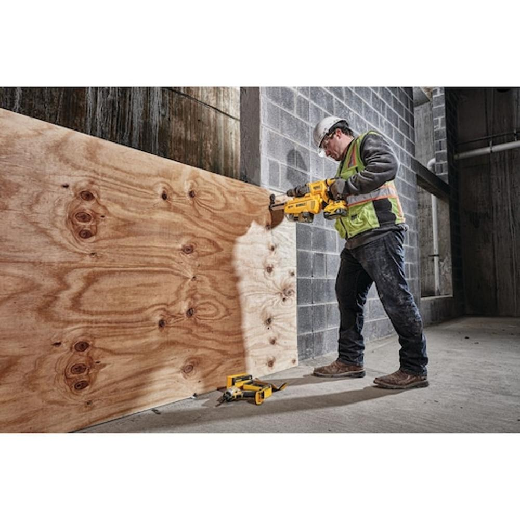

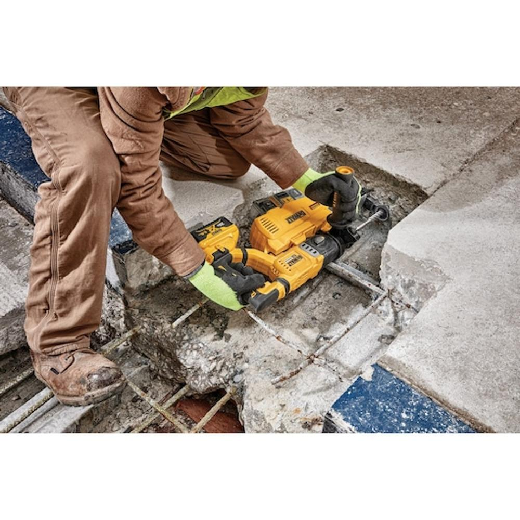

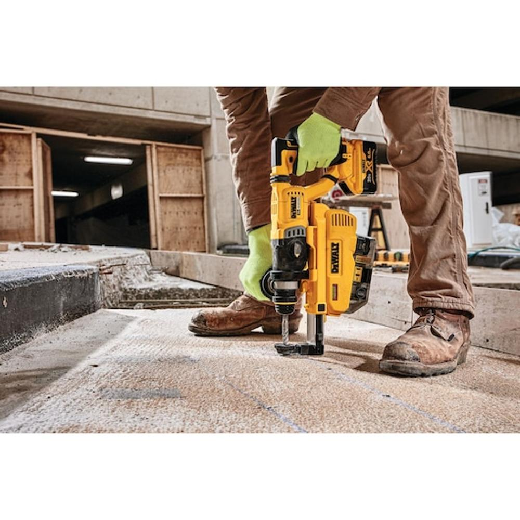

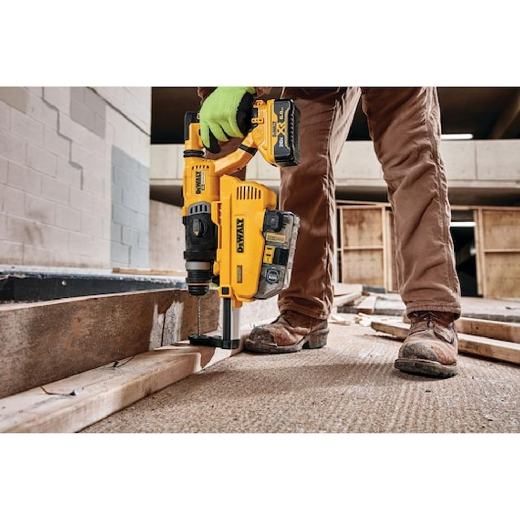

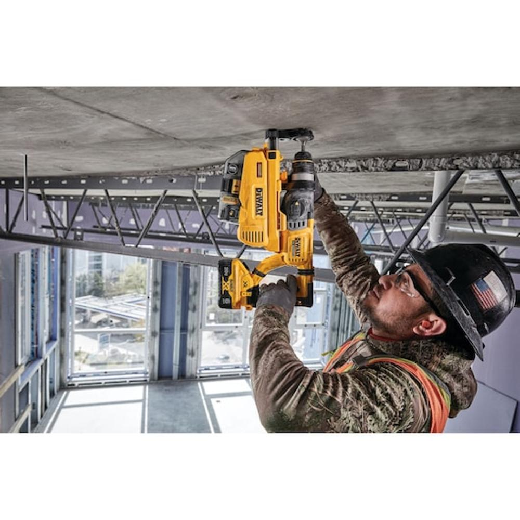

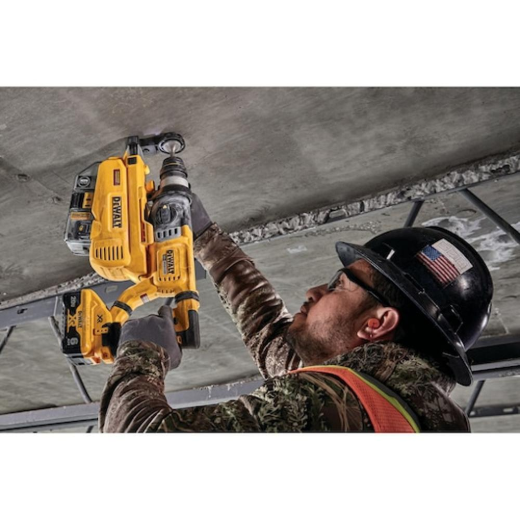

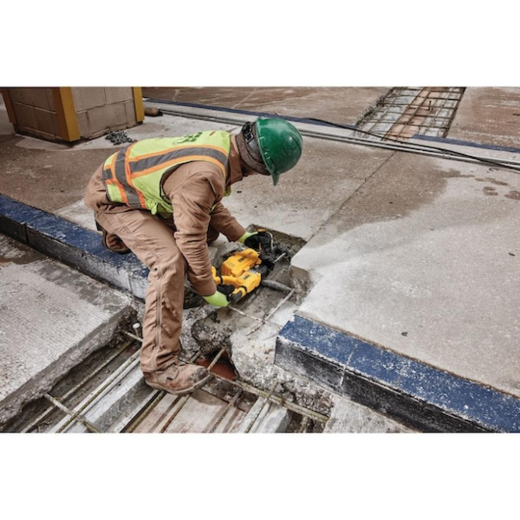

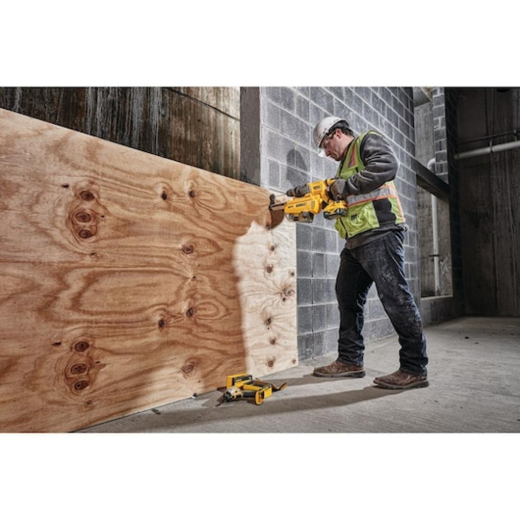

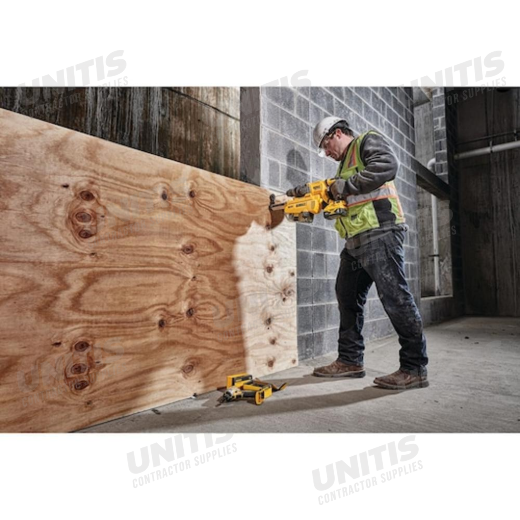

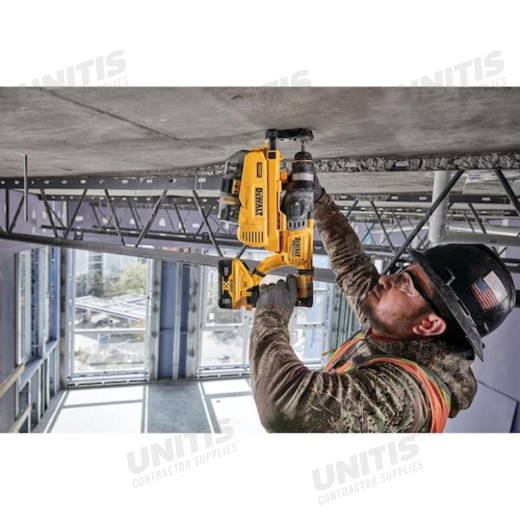

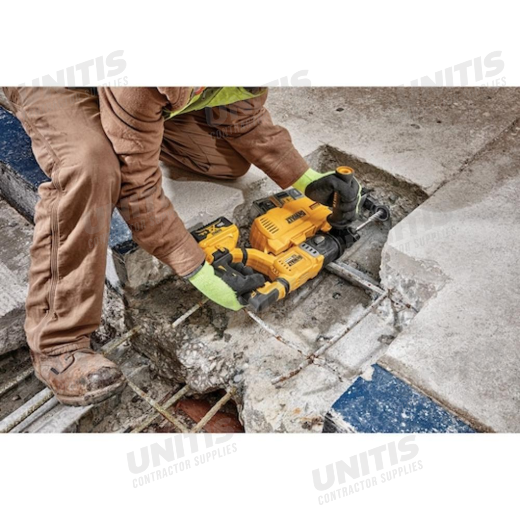

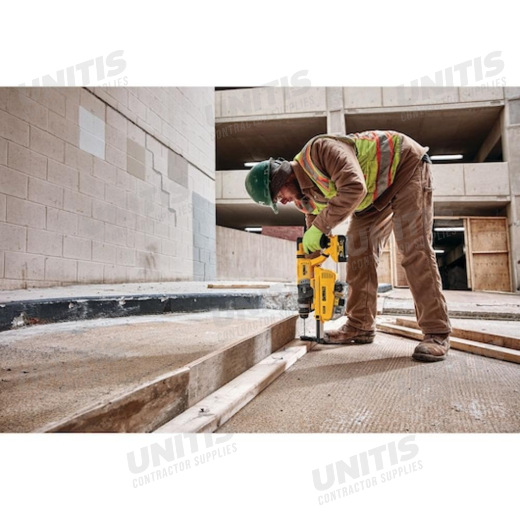

  • Enjoy an exceptional drilling and chipping experience in all orientations overhead, horizontal, and downward thanks to its optimized ergonomic design
  • Maintain rapid progress with constant speed under load, ensuring fast application speeds
  • Clearly see your work with a bright LED light designed to illuminate dark jobsite conditions
  • Experience significantly reduced vibration at the handles compared to hammers without this feature, thanks to the Shocks-Active Vibration Control system
  • Adapt to various bit sizes with three replaceable, optimized dust nozzle heads designed for bits up to 1 in. in diameter, stop bits up to 1.5 in. shoulder, and small diameter bits up to 1/2 in
  • Accommodate a wide range of bits with lengths up to 10 in. overall

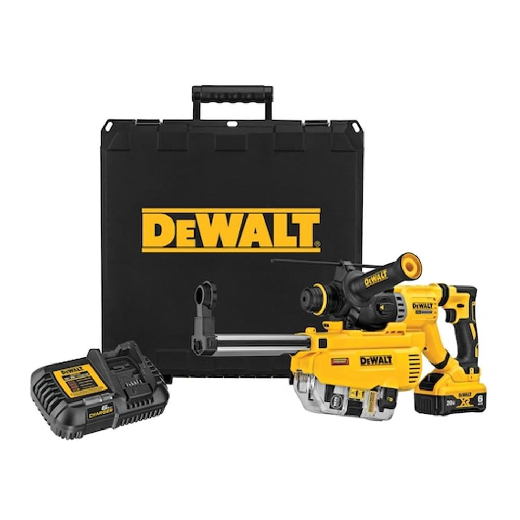

Includes

  • (1) Low Vibration Side Handle
  • (1) Depth Rod
  • (2) DCB206
  • (1) High Speed Charger
  • (1) DCH263 20V MAX* XR Brushless 1-1/8 in. D-Handle SDS Plus Rotary Hammer
Products specifications
AVT / Anti-Vibration Yes
Battery Platform 20V MAX
Battery Voltage 20 V
Beats per Minute 0-4300 BPM
Chuck Type SDS PLUS
Country of Origin Varies (subject to change)
Drilling Capacity in Concrete 1-1/8 in
Handle Type D-Handle
Impact Energy 3.0 J
Kit Contents DCH263, (2) DCB206 6.0Ah, Dust Extractor, Box
Manufacturer's Warranty 3 Year Limited
Motor Type XR Brushless
No-Load Speed 0-1165 RPM
Power Source Cordless
Series 20V MAX XR Brushless
Tool Length 15.88 in
Tool Only or Kit Kit (2 Batteries + Charger)
Tool Weight 5.95 lb
Type Rotary Hammer (D-Handle)
*
*
*
