Accuform Blind Flange Lockout Pipe Size 3-3/4 to 10-3/4 inches

Mfr.: Accuform Signs
Item #: I096588
Mfr. #: KDD502
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $55.68
i h h

Description

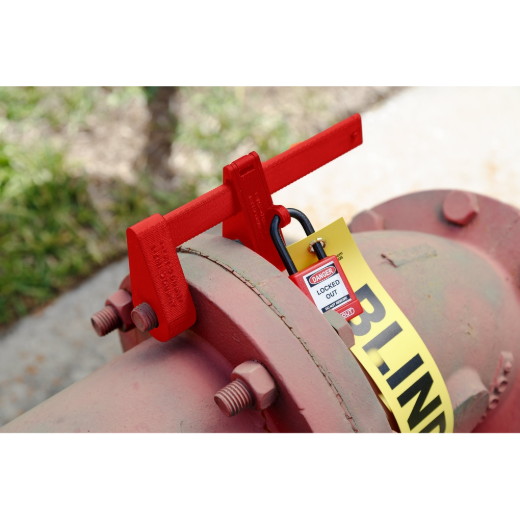

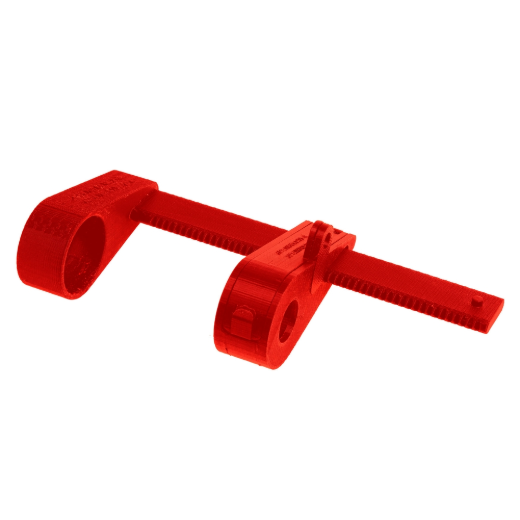

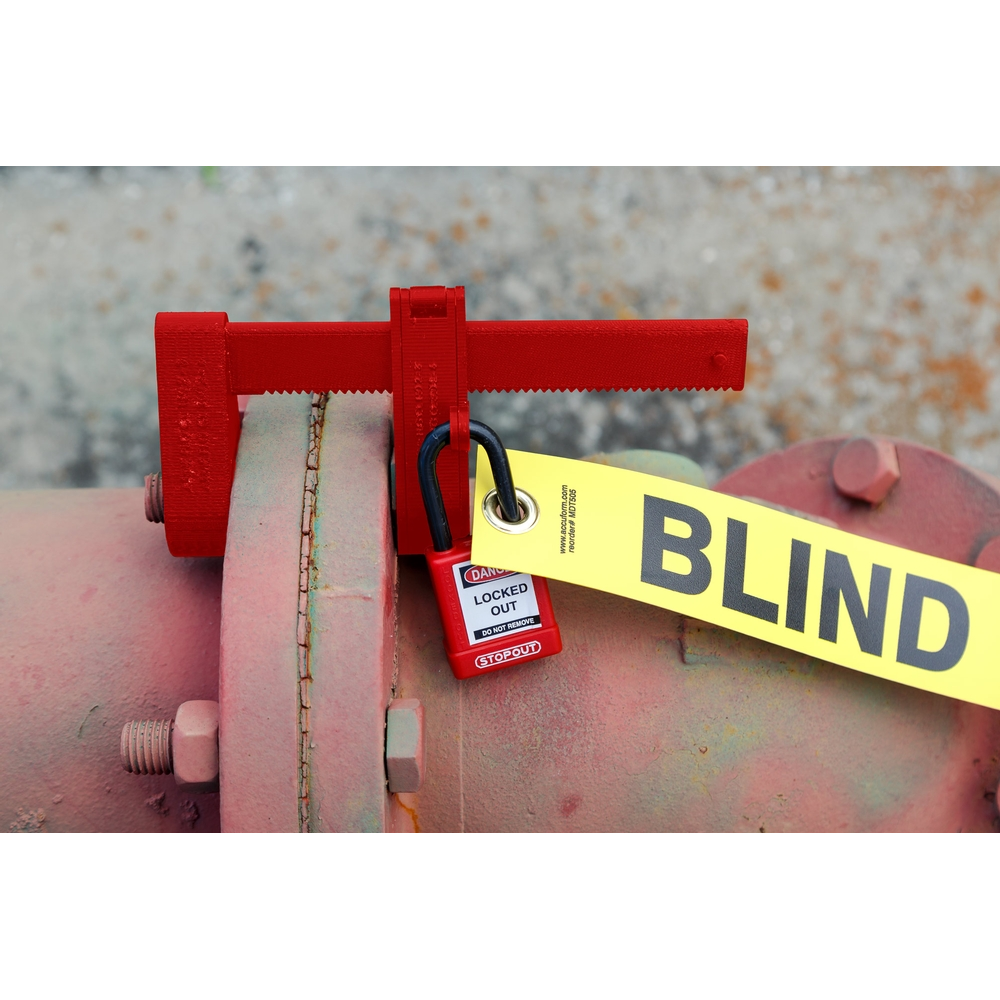

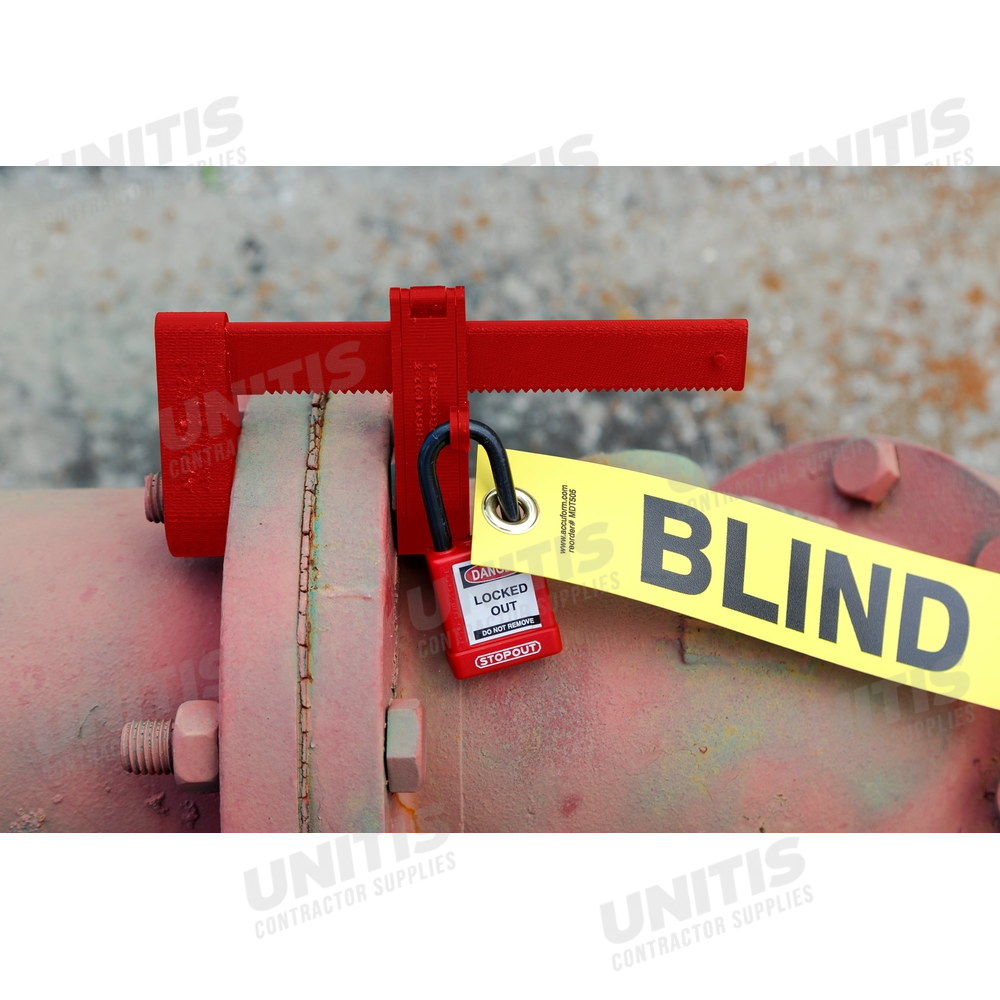

The adjustable-bracket fit device covers and conceals flange bolt and nut on both ends, preventing removal until maintenance work on the pipeline is done. Available in three different sizes to meet pipe flange width ranges.

Features

  • Effectively lockout and prevent unintentional pipe blind removal
  • Constructed of durable, high-impact plastic
  • Ideal for use in temperature of -4F to 140F
  • Adjustable device provides a tight fit
  • Maximum shackle diameter 9/32-inches

Specifications


SKUKDD502Pipe Flange Width Range3-3/4 inch - 10-3/4 inch
Class 150 Fits Nut Diameter.75 inch to .88 inchClass 150 Pipe Sizes2.0 inch to 8.0 inch
Class 300 Fits Nut Diameter.75 inch to 1.00 inchClass 300 Pipe Sizes2.0 inch to 6.0 inch
*
*
*
