Accuform Blind Flange Lockout Pipe Size 7-3/4 to 17-7/8 inches

Mfr.: Accuform Signs
Item #: I096589
Mfr. #: KDD503
*
Pickup at El Cajon | Change Delivering to 92111 | Change

Price: $83.41
i h h

Description

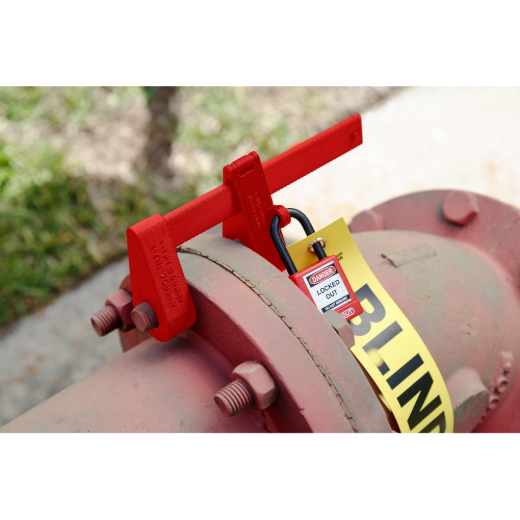

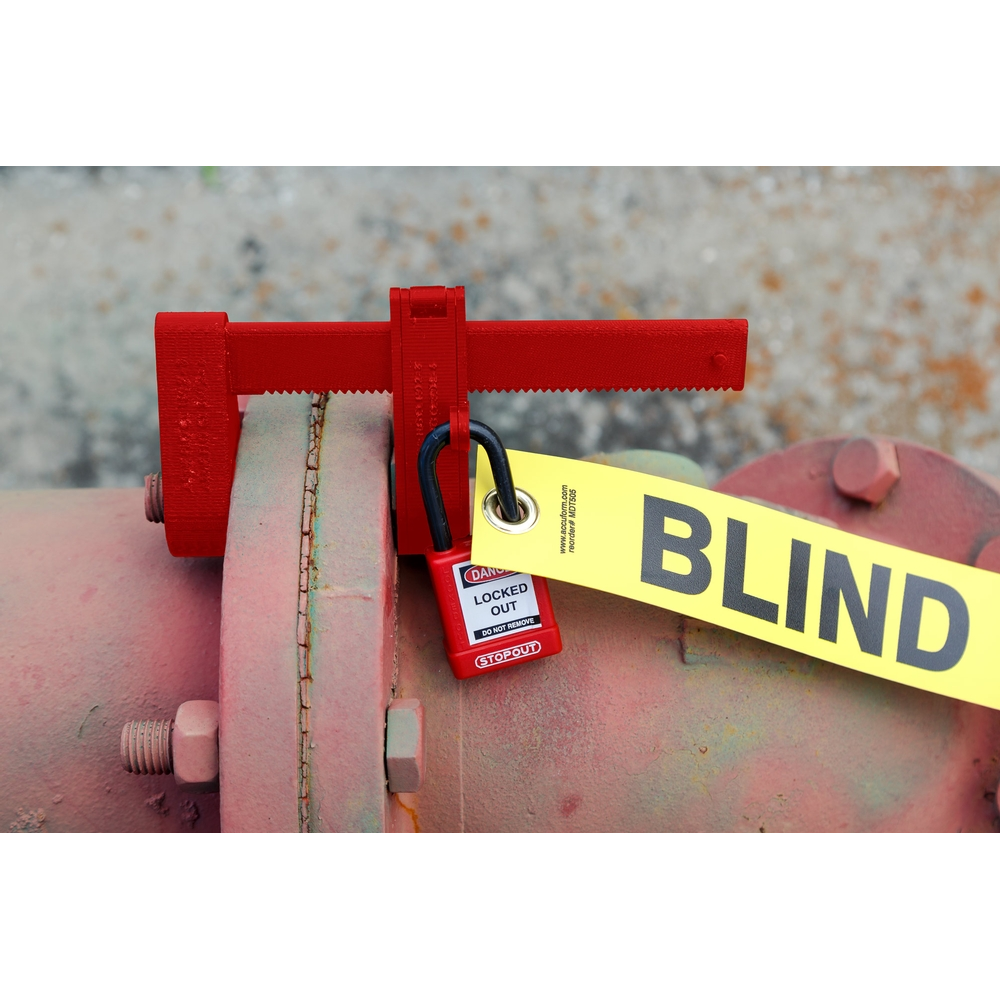

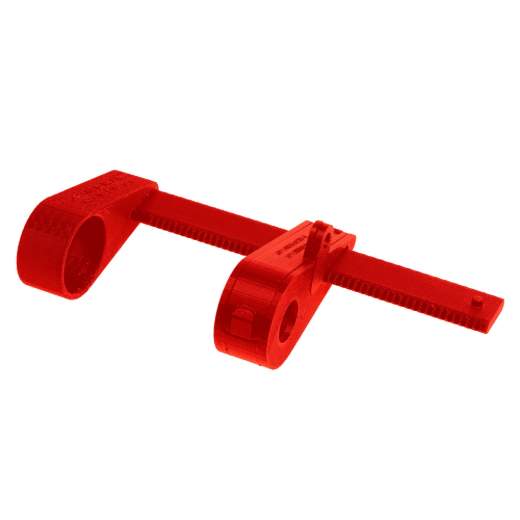

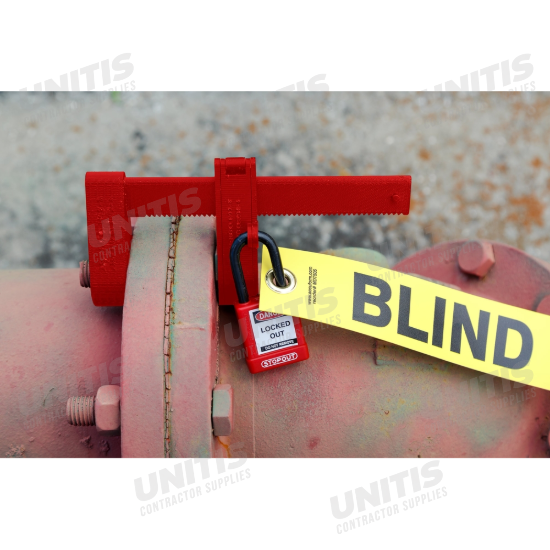

The adjustable-bracket fit device covers and conceals flange bolt and nut on both ends, preventing removal until maintenance work on the pipeline is done. Constructed of durable, high-impact plastic to withstand harsh environments.

Features

  • Effectively lockout and prevent unintentional pipe blind removal during maintenance
  • Ideal for use in temperature of -4F to 140F
  • Maximum shackle diameter 9/32-inches
  • Adjustable device provides a tight fit
  • Available in three different sizes to meet pipe flange width ranges

Specifications


SKUKDD503Weight0.431 lbs
Pipe Flange Width Range7-3/4 inch - 17-7/8 inchClass 150 Fits Nut Diameter.75 inch to .88 inch
Class 150 Pipe Sizes2.0 inch, 2.50 inch, 3 inch, 3.5 inch, 4.0 inch, 5.0 inch, 6.0 inch, 8.0 inchClass 300 Fits Nut Diameter.75 inch to 1.00 inch
Class 300 Pipe Sizes2.0 inch, 2.50 inch, 3 inch, 3.5 inch, 4.0 inch, 5.0 inch, 6.0 inch
*
*
*
