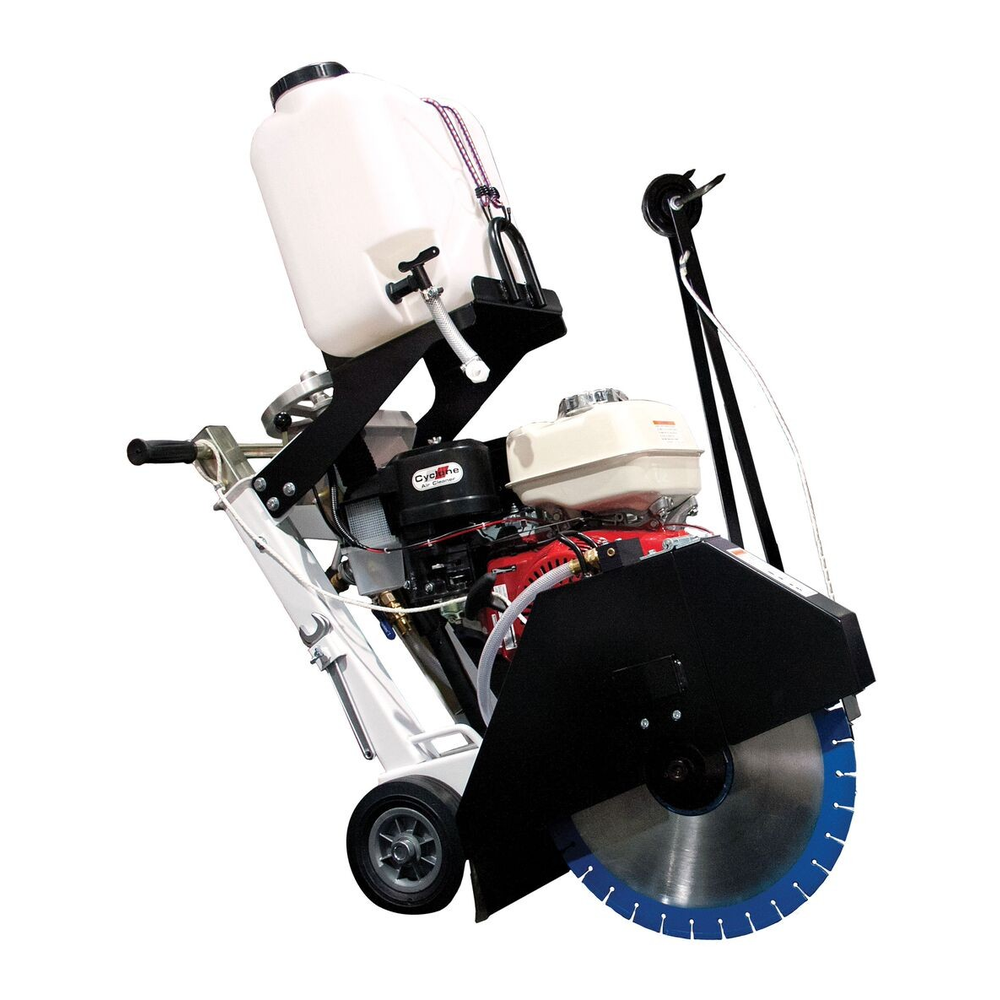

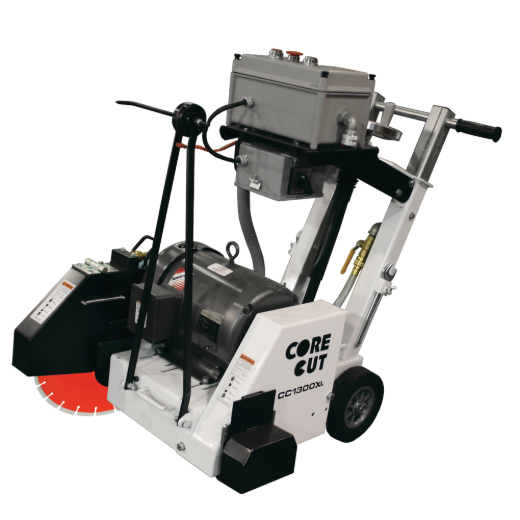

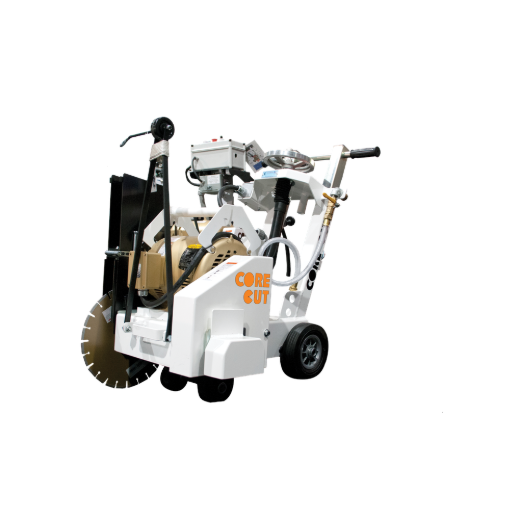

Diamond Products CC1300XL Small Walk Behind Saw - 11.7 HP, 19.5 lb-ft Torque

Mfr.: Diamond Products
Item #: I095769
Mfr. #: 21855
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $6,722.15
i h h

Description

Great for the General Contractor with 14 inch - 20 inch blade capacity. Heavy duty frame design with easy maneuverability and precision cutting features.

Features

  • Heavy duty frame design
  • Cyclone air filter (Honda models)
  • Easy to maneuver push drive
  • Four position heavy duty handles
  • Through rear axle for added strength

Specifications


Maximum depth of cut with 14" blade4-5/8 inchMaximum depth of cut with 18" blade6-5/8 inch
Maximum depth of cut with 20" blade7-5/8 inchBlade shaft RPM2,600
Blade shaft diameter1-1/4 inchArbor size1 inch with single drive pin
Blade mountingRight or leftBlade raiselowerPrecision screw feed
Handle barsAdjustableCatalog Number21855
Part Number5800723Blade Capacity20 inch
EngineMotor ModelGX390MotorEngine Power11.7 HP, 19.5 torque
EngineMotor MakeHondaPower SourceGAS
Products specifications
Country of Origin Varies (subject to change)
Horsepower 11.7 HP
Max Torque 19.5 ft-lb
Power Source Gas Engine
Series CC1300XL
Type Walk-Behind Concrete Saw
*
*
*
