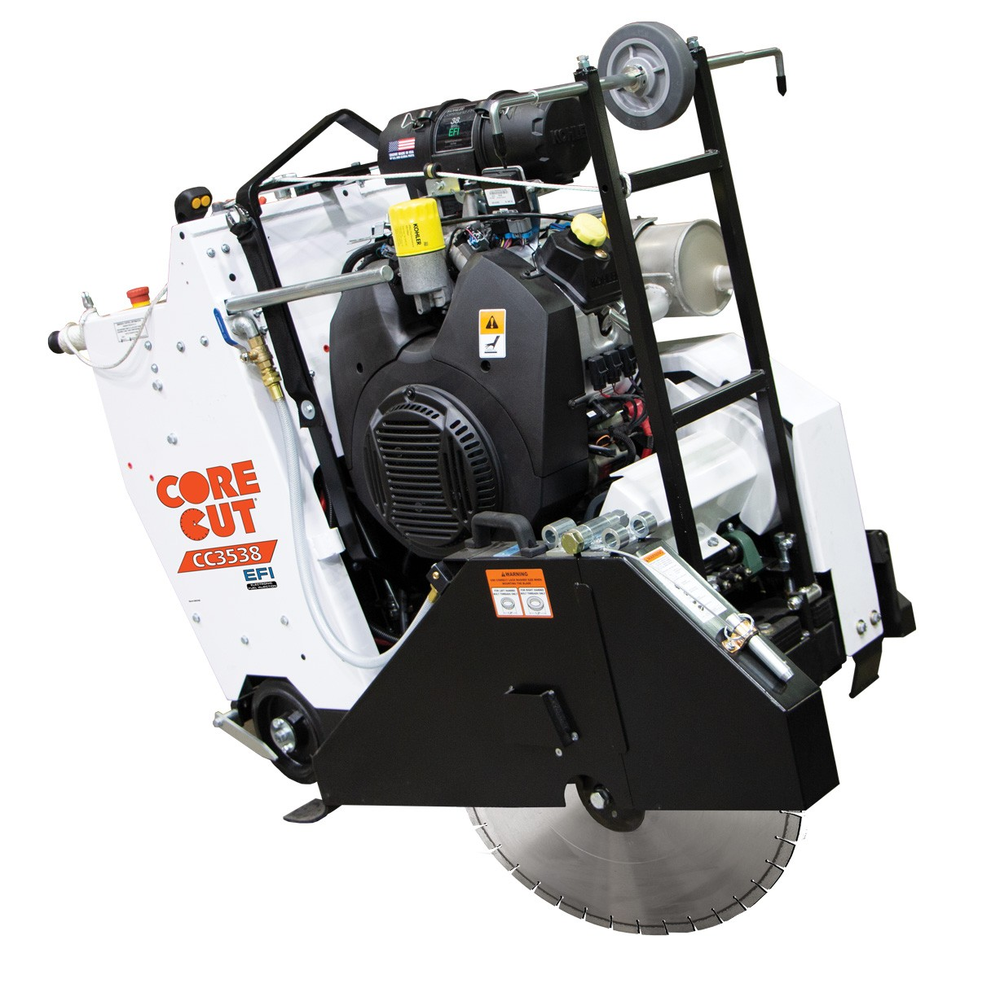

Diamond Products CC3538JK-30 Electronic Fuel Injected Saw - 38 HP

Mfr.: Diamond Products
Item #: I095765
Mfr. #: 100503
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $34,978.79
i h h

Description

A 38HP Kohler EFI concrete saw with 30 inch blade capacity and Eaton transmission. This mid-size saw offers fuel efficiency and maneuverability for service, utility, and rental applications.
  • 38HP Kohler EFI engine
  • 30 inch blade capacity
  • Eaton transmission
  • Self-propelled drive
  • 25% fuel savings

Features

  • Electronic Fuel Injection for 25% average fuel savings
  • Jackshaft design provides 30% more torque
  • Fits through 30 inch door frame
  • Electro-hydraulic blade raise/lower system
  • Easy engine adjustment for belt maintenance

Specifications


Engine MakeModelKohler Command Pro ECH980Engine Power38 HP
Blade Capacity30 inchMax Depth of Cut12-3/8 inch
TransmissionEaton Model 10Drive Speed0-200 feet per minute
Blade Shaft Diameter1-3/4 inchArbor Size1 inch with single drive pin
Blade Shaft Drive6 beltsAir Filter4-stage
Fuel Capacity6 gallonWeight1065 lbs
Part Number5801169Catalog Number100503
Products specifications
Country of Origin Varies (subject to change)
Horsepower 38 HP
Ignition Type Electronic Fuel Injection
Power Source Gas Engine
Series CC3538JK-30
Type Walk-Behind Concrete Saw
*
*
*
