  • Greenstreak Model 683 Concrete Placement 12" Elephant Trunk, 25 ft roll, priced per roll

Greenstreak Model 683 Concrete Placement 12" Elephant Trunk, 25 ft roll, priced per roll

Mfr.: Greenstreak -Sika
Item #: I101522
Mfr. #: 759579
*
Pickup at San Diego | Change Delivering to 92111 | Change

Digital Downloads
Price: $253.35
i h h

Description

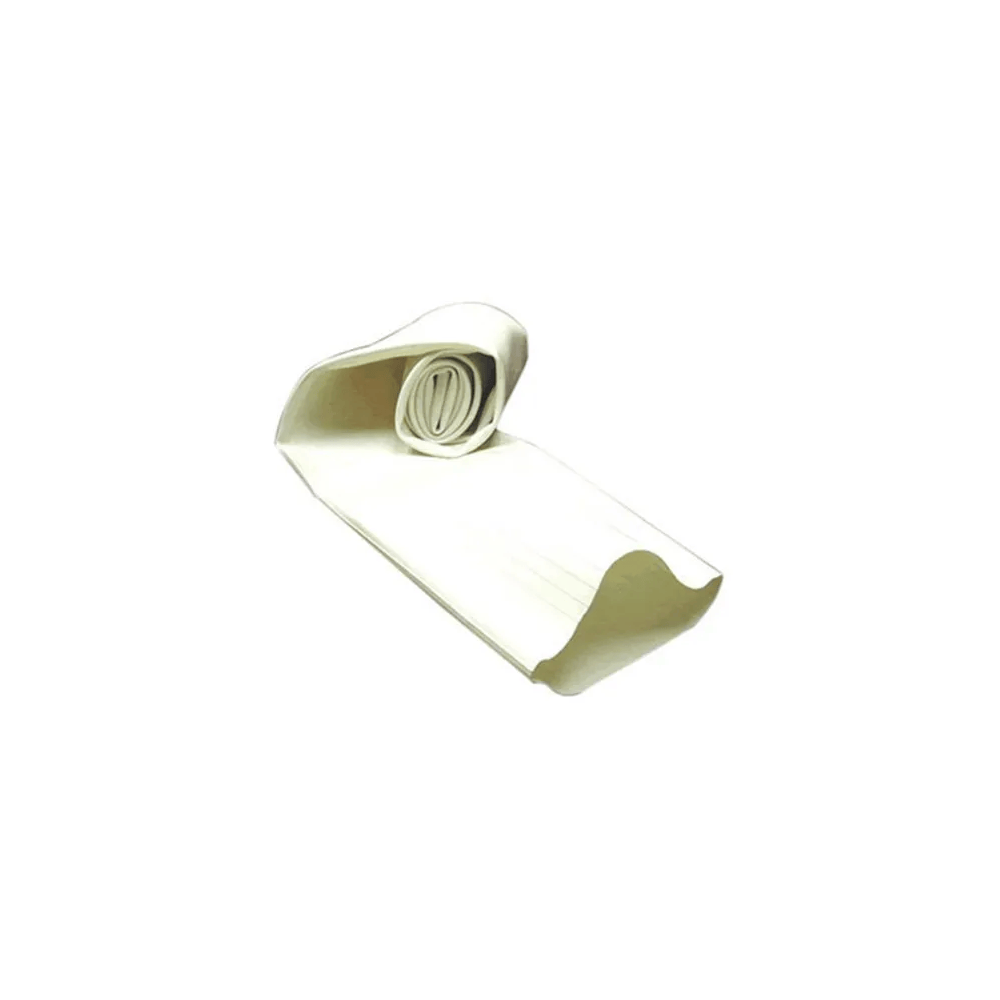

The Greenstreak Model 683 Elephant Trunk is a flexible PVC chute used to confine and direct concrete during placement in forms. This 12 inch diameter trunk is supplied in a 25-foot roll and can be cut to length on site. Hoppers, collars and clamps serve as complementary accessories to safely funnel concrete into the chute, reducing free-fall and segregation.
  • Flexible PVC chute confines and directs concrete during placement
  • Large 12 inch diameter for high-volume placement
  • Reduces segregation and free-fall of concrete
  • Supplied in a 25-foot roll, cut to length as needed
  • Compatible with No. 484 hopper, Model 689 collar and No. 690 clamps

Features

  • Diameter: 12 in
  • Roll length: 25 ft
  • Maximum recommended drop length: 25 ft
  • Material: flexible PVC
  • Model: 683
  • Sold per roll

Specifications


Model683TypeElephant Trunk concrete placement chute
Diameter12 inRoll Length25 ft
Max Recommended Length25 ftMaterialFlexible PVC
Compatible CollarModel 689 (12 inch to 13 inch)PackagingPer roll (25 ft)
BrandGreenstreak / Sika
*
*
*
