  • Greenstreak Model 702 PVC Waterstop 4" x 3/16" RCB, 50 ft roll, priced per foot

Greenstreak Model 702 PVC Waterstop 4" x 3/16" RCB, 50 ft roll, priced per foot

Mfr.: Greenstreak -Sika
Item #: I101481
Mfr. #: 419431
*
Pickup at San Diego | Change Delivering to 92111 | Change

Digital Downloads
Price: $5.62
i h h

Description

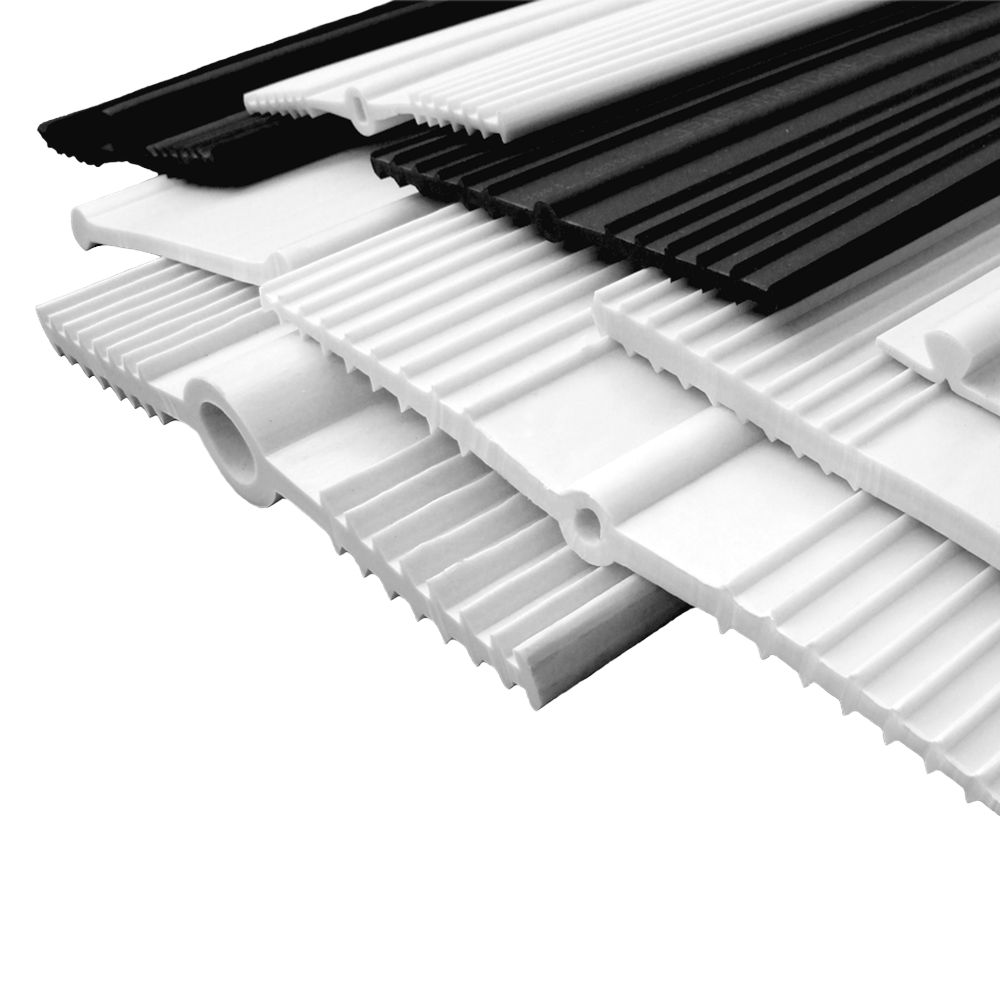

Greenstreak Model 702 is a 4 in. flexible PVC ribbed waterstop with a center bulb for moving expansion joints in cast-in-place concrete. The hollow center bulb bridges the joint and absorbs movement while the ribbed legs anchor the waterstop into the surrounding concrete, forming a continuous watertight diaphragm. Suitable for potable water contact per NSF/ANSI 61.
  • Flat ribbed profile enhances mechanical bond within poured concrete
  • Optimized for construction joint water sealing
  • Durable PVC material provides resistance to water, chemicals, and aging
  • Used in slabs, walls, and structures requiring dependable watertight joints
  • Flexible PVC with ribbed center bulb for expansion/moving joints
  • Hollow center bulb absorbs joint movement
  • Ribbed profile keys into concrete for pull-out resistance
  • NSF/ANSI 61 certified for potable water contact
  • Complies with U.S. Army Corps of Engineers spec CRD-C 572-74

Features

  • Flat ribbed profile enhances mechanical bond within poured concrete
  • Optimized for construction joint water sealing
  • Durable PVC material provides resistance to water, chemicals, and aging
  • Used in slabs, walls, and structures requiring dependable watertight joints
  • Flexible PVC with ribbed center bulb for expansion/moving joints
  • Hollow center bulb absorbs joint movement
  • Ribbed profile keys into concrete for pull-out resistance
  • NSF/ANSI 61 certified for potable water contact
  • Complies with U.S. Army Corps of Engineers spec CRD-C 572-74
  • Model: 702
  • Size: 4 in. x 3/16 in.
  • Profile: Ribbed Center Bulb (RCB)
  • Roll length: 50 ft
  • Material: PVC
  • Joint type: Moving / expansion joint
  • Priced per foot

Specifications


Model702Size4 inch x 3/16 inch
ProfileRibbed Center Bulb (RCB)Roll length50 ft
MaterialPVCJoint typeMoving / expansion joint
Shore A Hardness79 +/- 3 (ASTM D2240)Tensile Strength2000 psi min (ASTM D638)
StandardsNSF/ANSI 61; CRD-C 572-74PricingPer foot
*
*
*
