  • Greenstreak Model 746 PVC Waterstop 6" x 3/16" DB, 100 ft roll, priced per foot

Greenstreak Model 746 PVC Waterstop 6" x 3/16" DB, 100 ft roll, priced per foot

Mfr.: Greenstreak -Sika
Item #: I101487
Mfr. #: 419543
*
Pickup at San Diego | Change Delivering to 92111 | Change

Digital Downloads
Price: $5.43
i h h

Description

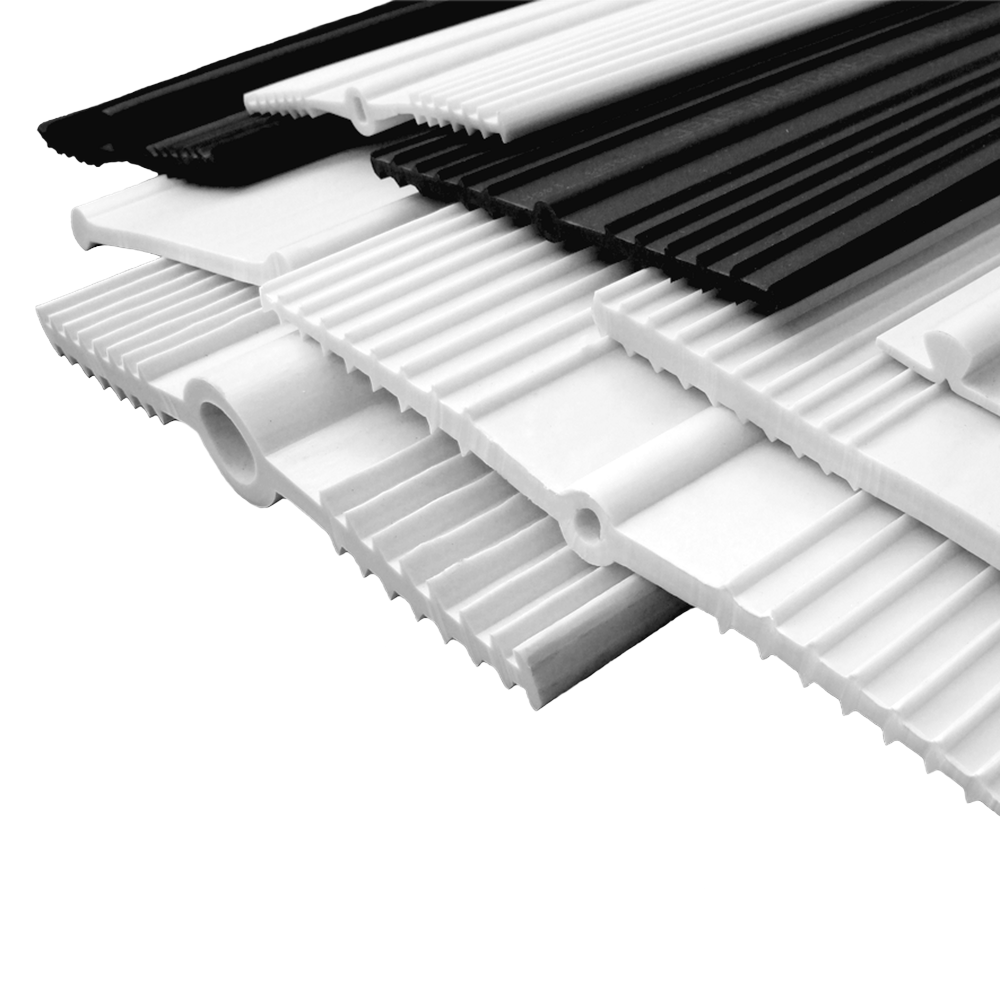

Greenstreak Model 746 is a 6 in. flexible PVC dumbbell waterstop for sealing non-moving construction joints in cast-in-place concrete. The dumbbell end bulbs embed and anchor into the concrete on both sides of the joint, forming a watertight diaphragm that blocks the passage of liquid. Approved for potable water contact per NSF/ANSI 61.
  • Flat ribbed profile enhances mechanical bond within poured concrete
  • Optimized for construction joint water sealing
  • Durable PVC material provides resistance to water, chemicals, and aging
  • Used in slabs, walls, and structures requiring dependable watertight joints
  • Flexible PVC dumbbell profile for non-moving construction joints
  • End bulbs key into concrete to resist hydrostatic pull-out
  • NSF/ANSI 61 certified for potable water contact
  • Complies with U.S. Army Corps of Engineers spec CRD-C 572-74
  • Heat-weldable for continuous splices

Features

  • Flat ribbed profile enhances mechanical bond within poured concrete
  • Optimized for construction joint water sealing
  • Durable PVC material provides resistance to water, chemicals, and aging
  • Used in slabs, walls, and structures requiring dependable watertight joints
  • Flexible PVC dumbbell profile for non-moving construction joints
  • End bulbs key into concrete to resist hydrostatic pull-out
  • NSF/ANSI 61 certified for potable water contact
  • Complies with U.S. Army Corps of Engineers spec CRD-C 572-74
  • Heat-weldable for continuous splices
  • Model: 746
  • Size: 6 in. x 3/16 in.
  • Profile: Dumbbell (DB)
  • Roll length: 100 ft
  • Material: PVC
  • Joint type: Non-moving / construction joint
  • Priced per foot

Specifications


Model746Size6 inch x 3/16 inch
ProfileDumbbell (DB)Roll length100 ft
MaterialPVCJoint typeNon-moving / construction joint
Shore A Hardness79 +/- 3 (ASTM D2240)Tensile Strength2000 psi min (ASTM D638)
StandardsNSF/ANSI 61; CRD-C 572-74PricingPer foot
*
*
*
