Greenstreak Model 783 PVC Waterstop 6"x3/8"-1/4" T FR, 50 ft roll, priced per foot

Mfr.: Greenstreak -Sika
Item #: I101491
Mfr. #: 419597
*
Pickup at San Diego | Change Delivering to 92111 | Change

Digital Downloads
Price: $10.55
i h h

Description

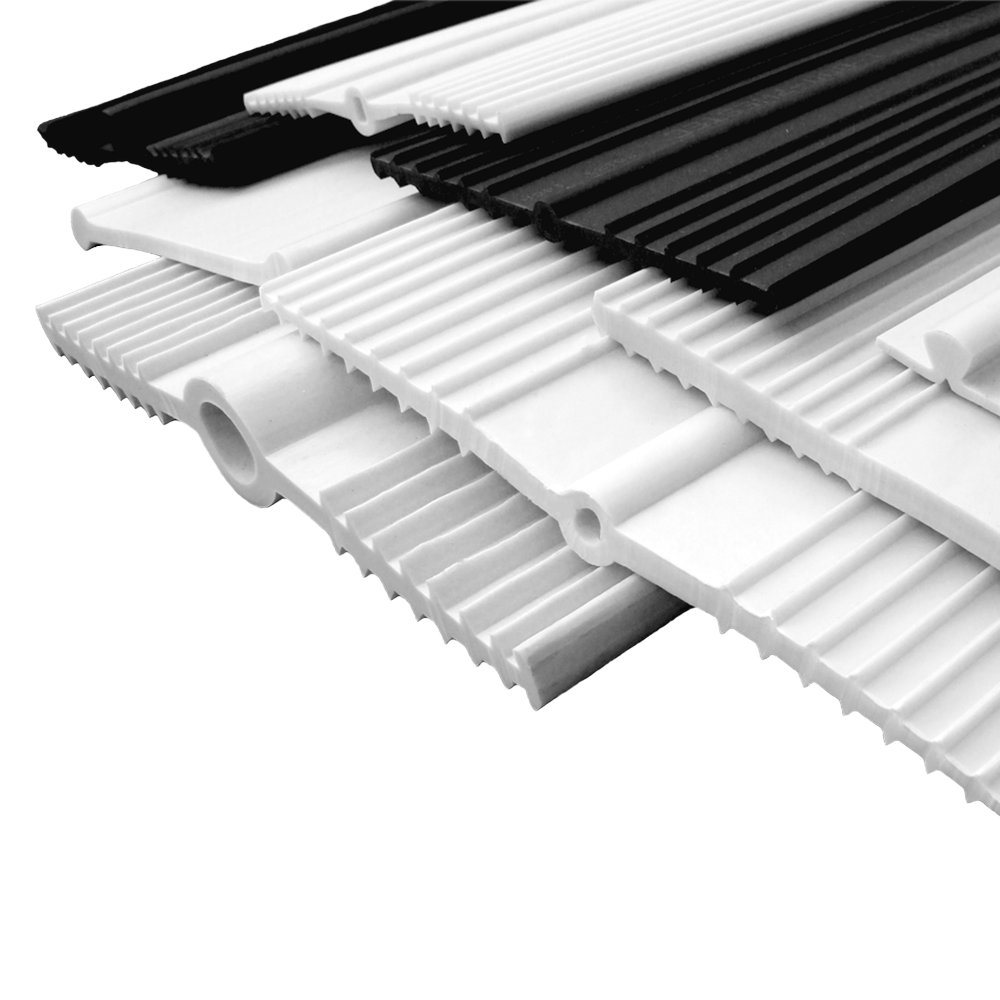

Greenstreak Model 783 is a heavy-duty flexible PVC waterstop with a 6 in. wide flat ribbed (FR) tear-web (T) profile, 3/8 in. thick at the flanges tapering to 1/4 in., designed for high-head expansion and moving joints in concrete. The tear web accommodates joint movement while the ribbed flanges lock into concrete to form a watertight seal. Supplied in 50 ft rolls and priced per foot.
  • Flat ribbed profile enhances mechanical bond within poured concrete
  • Optimized for construction joint water sealing
  • Durable PVC material provides resistance to water, chemicals, and aging
  • Used in slabs, walls, and structures requiring dependable watertight joints
  • Tear-web center for accommodating expansion joint movement
  • Flat ribbed flanges for superior concrete anchorage
  • Heavy-duty profile rated for high hydrostatic head
  • Suitable for potable water contact per NSF/ANSI Standard 61

Features

  • Flat ribbed profile enhances mechanical bond within poured concrete
  • Optimized for construction joint water sealing
  • Durable PVC material provides resistance to water, chemicals, and aging
  • Used in slabs, walls, and structures requiring dependable watertight joints
  • 6 in. wide flat ribbed tear-web profile, 3/8 in. tapering to 1/4 in. thick
  • Supplied in 50 ft rolls, priced per foot
  • Approximate weight 1.39 lb/ft (2.07 kg/m)
  • Head pressure rating approximately 125 ft (373 kPa)
  • Meets Army Corps of Engineers Specification CRD-C 572-74; passes brittleness at -35 F
  • Applications: high-head expansion joints in dams, reservoirs, tunnels, tanks

Specifications


Model783ProfileFlat ribbed tear-web (T FR)
Width6 inchThickness3/8 inch to 1/4 inch
Roll length50 ftPricingPer foot
MaterialFlexible PVCJoint typeHigh-head expansion/moving joint
Weight1.39 lb/ft (2.07 kg/m)Head pressure rating125 ft (373 kPa)
StandardsNSF/ANSI 61, CRD-C 572-74
*
*
*
