Greenstreak Model PSD10/#11TX Speed Dowels #11 Rebar or 1 1/2" Smooth x 20" Sleeve only steel not in

Mfr.: Greenstreak -Sika
Item #: I101550
Mfr. #: 419191
*
Pickup at San Diego | Change Delivering to 92111 | Change

Digital Downloads
Price: $465.75
i h h

Description

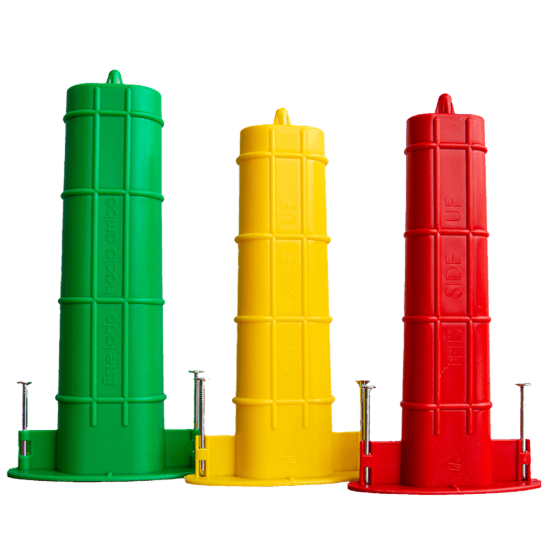

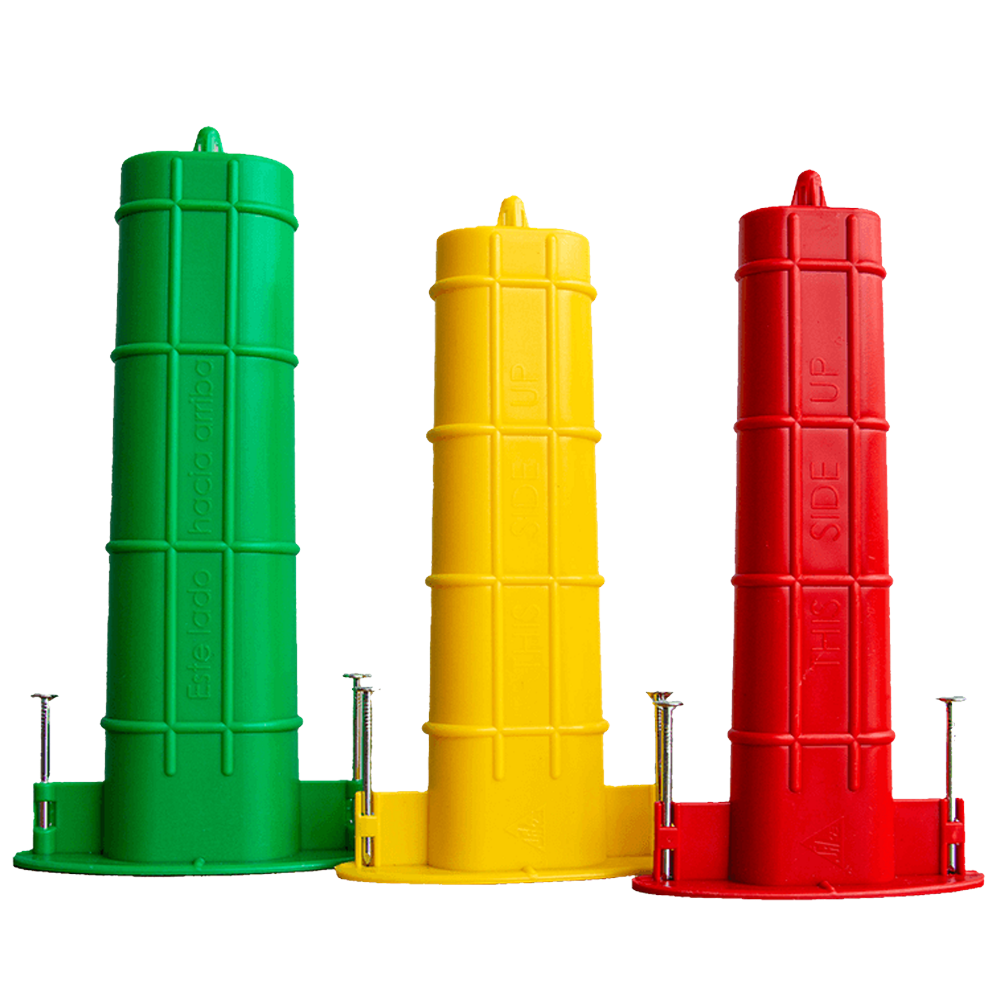

The Greenstreak Model PSD10/#11TX Speed Dowel is the top sleeve component of the pioneering slip dowel installation system that ensures proper dowel alignment for positive load transfer in slab-on-ground concrete joints. This 20 inch sleeve accepts a #11 rebar or 1-1/2 inch smooth dowel (steel not included) and eliminates the need to grease, drill, or remove dowels. Molded from 100% polypropylene for long-term durability in the slab.
  • Accepts #11 rebar or 1-1/2 inch smooth dowel, 20 inch sleeve length
  • Reduces installation time vs. conventional doweling methods
  • Eliminates the need for greasing the dowel
  • Ensures proper dowel alignment for positive load transfer

Features

  • Top sleeve component (steel dowel not included)
  • 100% polypropylene chemical base
  • Speed Dowel sleeve thickness 0.125 inch
  • Compression resistance 5,500-8,000 PSI (ASTM D-695)
  • 100 pieces per carton
  • 5-year shelf life in cool, dry warehouse conditions

Specifications


ModelPSD10/#11TXComponentTop sleeve (steel not included)
Dowel Size#11 rebar or 1-1/2 inch smoothSleeve Length20 inch
Sleeve Thickness0.125 inchMaterial100% polypropylene
Compression Resistance5,500-8,000 PSI (ASTM D-695)Pieces per Carton100
Shelf Life5 years (cool, dry storage)PricingPer carton
*
*
*
