Greenstreak Model SDP02 Speed Dowel Plus 1" Yellow, 100 pcs per carton, priced per carton

Mfr.: Greenstreak -Sika
Item #: I101553
Mfr. #: 730896
*
Pickup at San Diego | Change Delivering to 92111 | Change

Digital Downloads
Price: $502.44
i h h

Description

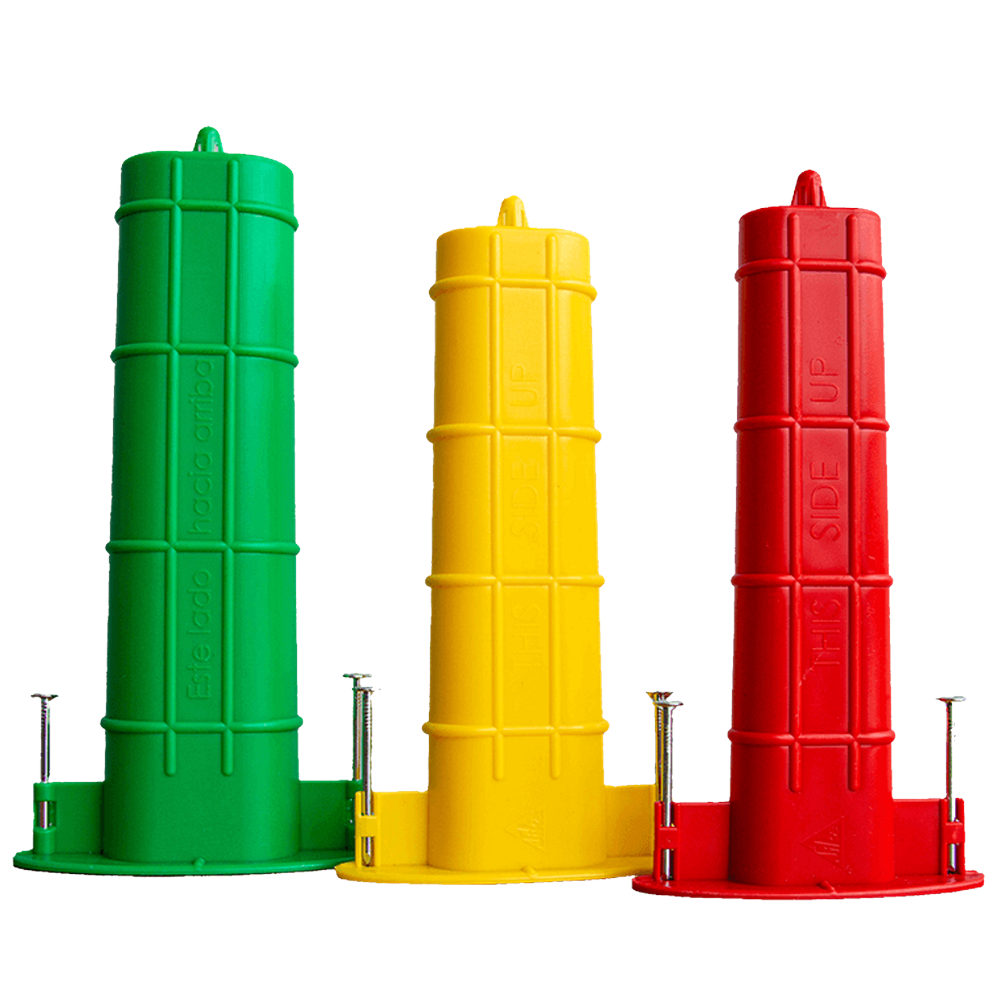

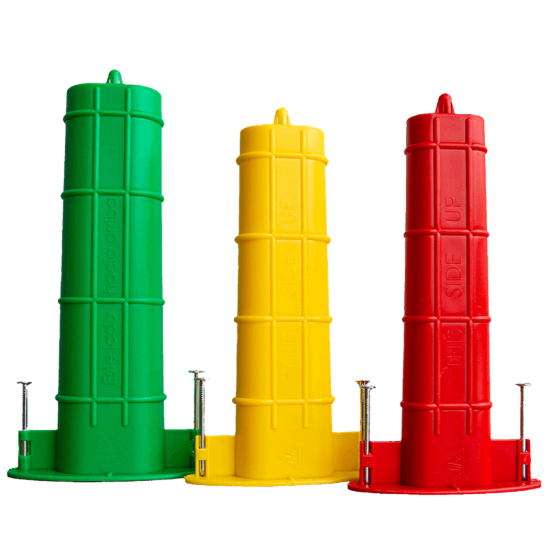

The Greenstreak Model SDP02 Sika Speed Dowel Plus is a 1 inch round slip dowel installation system that provides load transfer across construction joints while accommodating lateral and axial movement from concrete shrinkage and differential slab movement. Its integral, patented sleeve fins eliminate lateral restraint between concrete sections, and the one-piece design includes alignment marks and preinstalled nails for quick installation. Color-coded yellow for the 1 inch size.
  • 1 inch x 14 inch smooth dowel system, color-coded yellow
  • Integral, patented sleeve fins eliminate lateral restraint between concrete sections
  • One-piece design with alignment marks and preinstalled nails
  • No form drilling, greasing, spinning, removing, or replacing of dowels

Features

  • Accommodates lateral and axial movement from shrinkage
  • Compliant with ACI 302, ACI 330, and ACI 360
  • 100% polypropylene; sleeve thickness 0.083 inch
  • Compression resistance 5,500-8,000 PSI (ASTM D-695)
  • 100 pieces per carton
  • No expiration; store in cool, dry warehouse conditions

Specifications


ModelSDP02Dowel Size1 inch x 14 inch smooth
ColorYellowSleeve Thickness0.083 inch
Material100% polypropyleneCompression Resistance5,500-8,000 PSI (ASTM D-695)
StandardsACI 302, ACI 330, ACI 360Pieces per Carton100
Shelf LifeNo expiration (cool, dry storage)PricingPer carton
*
*
*
