Greenstreak XPlugs XP006 5/8" - 3/4" Yellow Pail, 350 pieces per pail, priced per pail

Mfr.: Greenstreak -Sika
Item #: I101515
Mfr. #: 420804
*
Pickup at San Diego | Change Delivering to 92111 | Change

Digital Downloads
Price: $1,708.64
i h h

Description

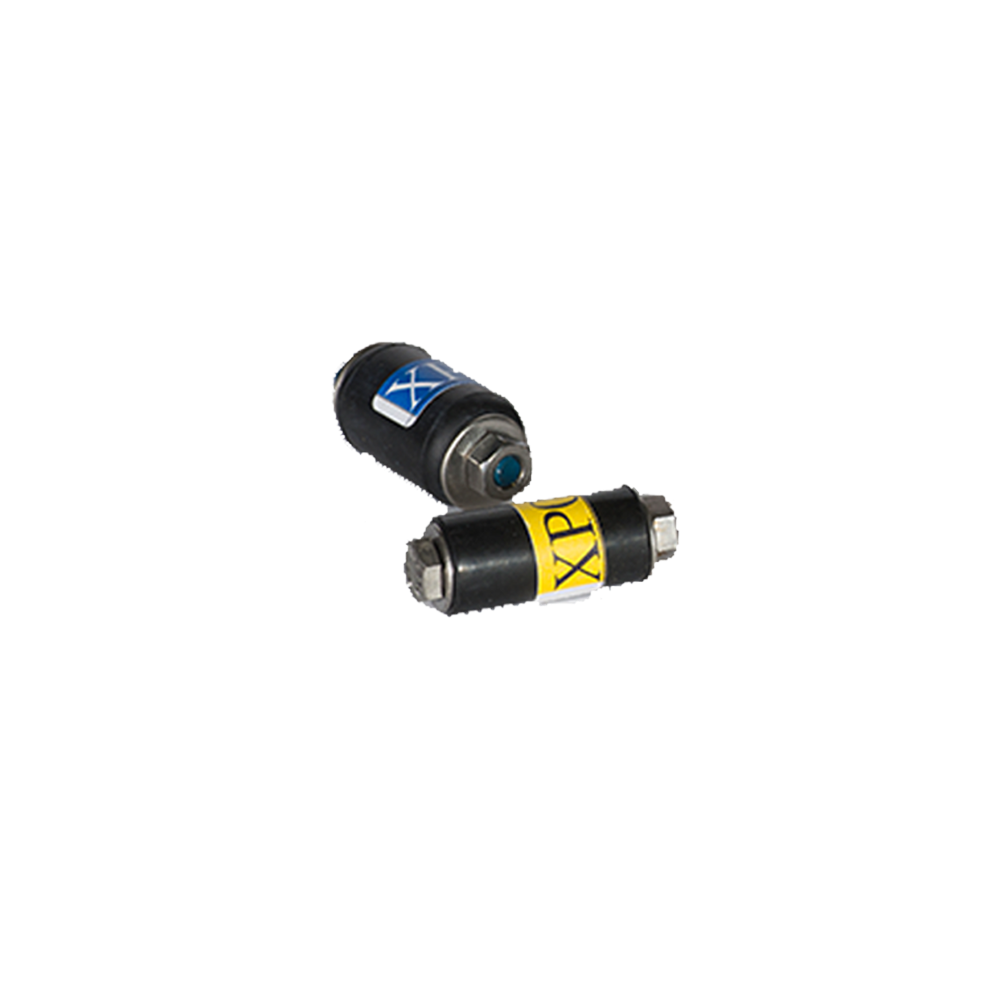

The Sika Greenstreak X-Plug XP006 is a mechanical plug used to seal the voids left by taper tie rods or pass-through sleeves in concrete walls. It uses a Xylan-coated stainless steel bolt and an EPDM rubber plug that expands when tightened to form a liquid-tight seal rated to roughly 300 feet of head. The XP006 (yellow) suits taper tie holes from 5/8 inch to 3/4 inch and is supplied 350 pieces per pail.
  • Mechanical seal requires no grout on either side of the wall
  • 304 stainless steel bolt with Xylan coating for corrosion resistance
  • EPDM rubber plug expands when tightened for a liquid-tight seal
  • Color-coded yellow pail for quick size identification

Features

  • Fits taper tie holes 5/8 inch to 3/4 inch
  • Yellow pail, 350 pieces per pail, priced per pail
  • Pressure rating up to approximately 300 feet of head
  • Compression-set bolt prevents spinning during installation
  • Compression resistance 34.5% (ASTM D395), tensile strength 13.2 MPa, elongation 410% (ASTM D412)

Specifications


BrandSika GreenstreakProductX-Plug XP006
Model NumberXP006Taper Tie Hole Size5/8 inch to 3/4 inch
Pail ColorYellowQuantity350 pieces per pail
PricingPriced per pailBolt Material304 stainless steel with Xylan coating
Plug MaterialEPDM rubberPressure RatingUp to approximately 300 feet of head
Compression Resistance34.5% (ASTM D395)Tensile Strength13.2 MPa (ASTM D412)
Elongation410% (ASTM D412)Water Absorption<3.5% (ASTM D471)
UseSeals voids from taper tie rods / pass-through sleeves in concrete walls
*
*
*
