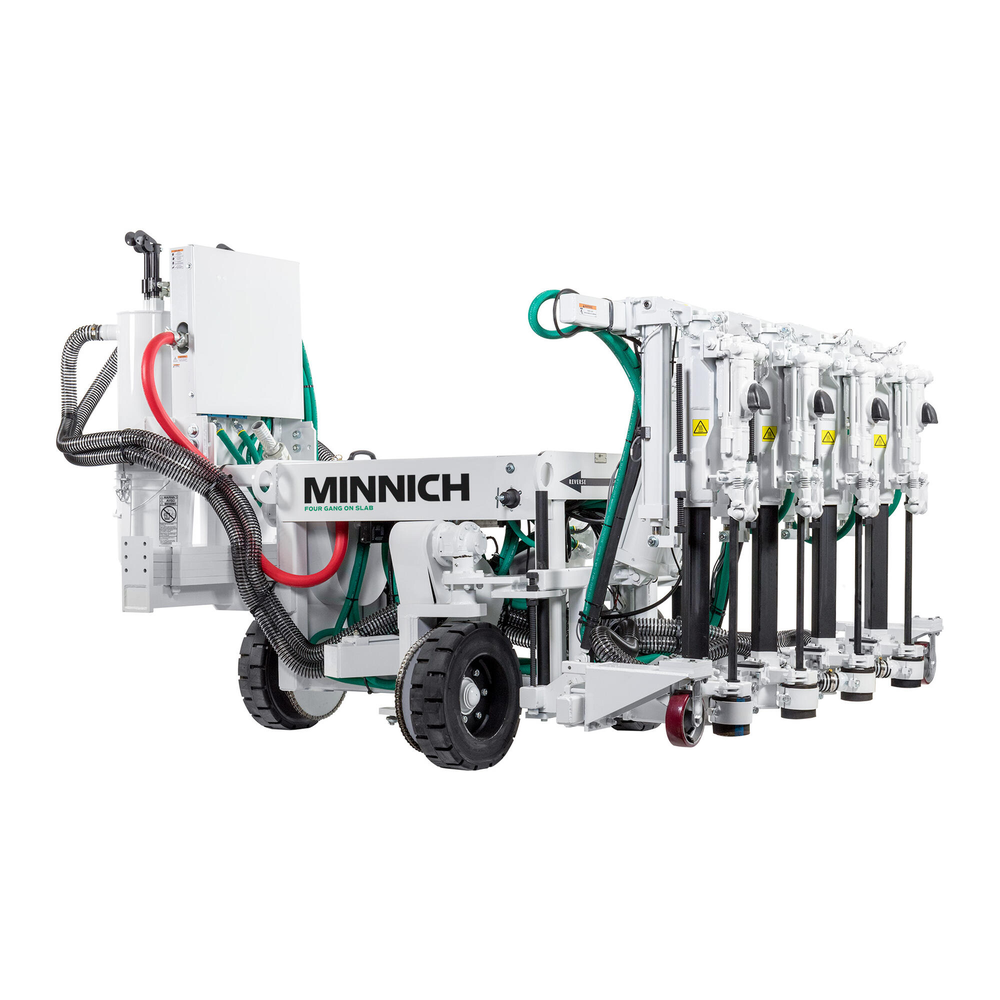

Minnich A-4SCW On-Slab Self-Propelled Wireless Dowel Pin Drill

Mfr.: Minnich Manufacturing
Item #: I070748
Mfr. #: A-4SCW
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $73,160.00
i h h

Description

The Minnich A-4SCW is a high-performance, on-slab self-propelled wireless dowel pin drill designed to maximize operator safety and drilling efficiency on large-scale paving projects. Featuring four 50 lb pneumatic drills mounted on a robust three-wheeled frame, this unit allows for the simultaneous drilling of multiple holes while the operator maintains a safe vantage point via wireless remote control. The inclusion of the advanced I-QAN remote communication system provides real-time diagnostics and monitoring to ensure maximum uptime and precision. This model is essentially an expanded version of the A-3SCW, providing a fourth drill for increased productivity in high-volume applications.
  • I-QAN Remote Communication System for mobile monitoring and diagnostics.
  • Wireless remote control with joystick for steering, speed, and direction.
  • Automatic drill retract and shut-off to prevent dry firing and extend drill life.
  • Power crab steering for efficient slab maneuvering without lifting the drill bed.

Features

  • Magnetic feed sensor that prevents machine travel if the drill slider is not fully retracted, protecting equipment from stuck steel.
  • 24-volt power system compatible with most large jobsite air compressors.
  • Adjustable drill height, depth, and centers to meet varying project specifications.
  • Available skew drill bed and dust collection system compatibility for cleaner, more versatile operation.

Includes

  • Wireless Remote Control with Joystick
  • Two (2) 24V Rechargeable Batteries (8-12 hour life each)
  • I-QAN System Integration for remote support access
  • Four 50 lb Pneumatic Drills
Products specifications
Pressure Requirement (PSIG) 110 PSIG (7.58 BAR)
Air Requirement (SCFM) 92.2 SCFM per drill (Approx. 370 SCFM total)
Drill Steel Length 24 in (61.0 cm) under collar
Power System 24-Volt
Drill Distance from Top of Slab 3.5 in - 12 in (8.9 cm - 30.5 cm)
Minimum Cutout Width 48 in (121.9 cm)
Service Weight 3,260 lbs (1,433 kg)
Number of Drills 4
Model A-4SCW
Drill Steel Shank 0.875 in x 4.25 in (22.2 mm x 107.9 mm)
Drill Bit Diameter 0.625 in - 2.50 in (15.9 mm - 63.5 mm)
Maximum Drill Depth 18 in (45.7 cm)
*
*
*
