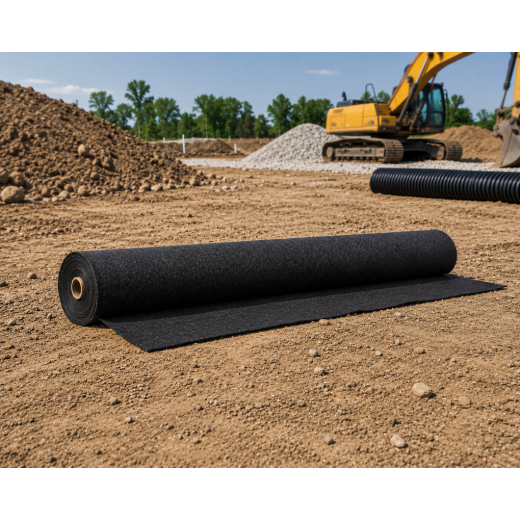

Mirafi 140N Nonwoven Filter Fabric - 15' x 360' (5400 sf)

Mfr.: Solmax - Mirafi
Item #: I015269
Mfr. #: 140N/15/360
*
Pickup at San Diego | Change Delivering to 92111 | Change

Digital Downloads
Price: $669.87
i h h

Description

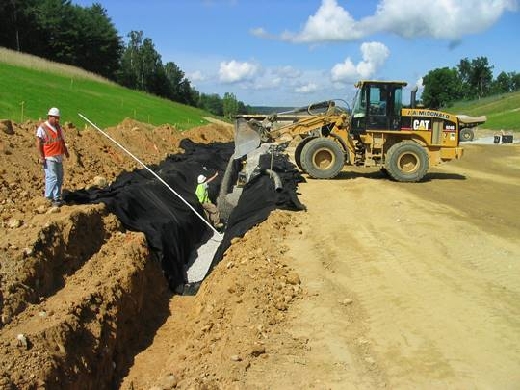

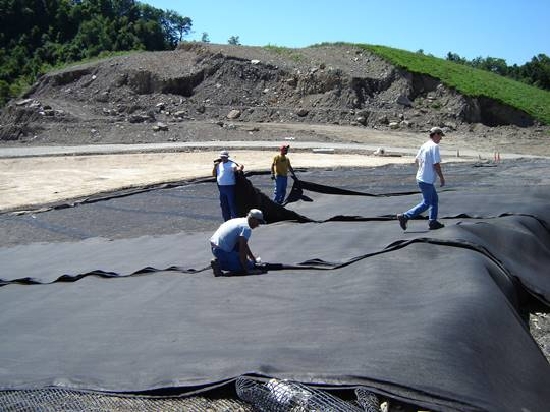

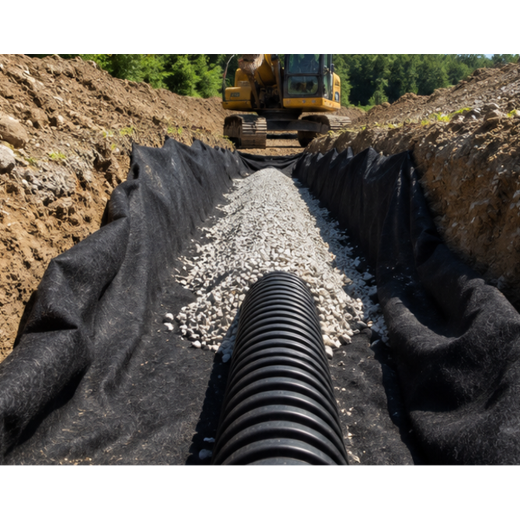

MIRAFI 140N is a nonwoven polypropylene geotextile designed for soil separation, filtration, and drainage. It combines high water flow rates with excellent soil particle retention and durability.
  • High permittivity for high water flow rates
  • Excellent soil retention
  • Chemically stable in aggressive environments
  • Cost-effective alternative to graded aggregate filters
  • Conforms easily to ground or trench surfaces

Features

  • Nonwoven polypropylene geotextile
  • High water flow rates
  • Excellent soil particle retention
  • Durable and chemically stable

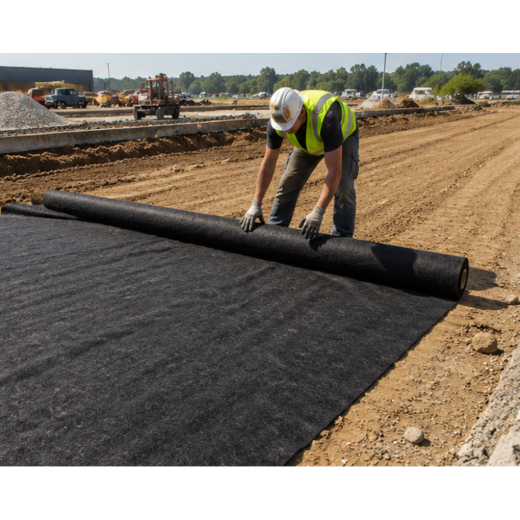

  • Easy installation

Specifications


Product TypeNonwoven GeotextileMaterialPolypropylene
Width15 ftLength360 ft
Area5400 sfSeriesN-Series
Products specifications
Apparent Opening Size #70 sieve
Application Soil Separation/Filtration/Drainage
CBR Puncture Strength 310 lb
Certifications AASHTO M288 Compliant
Country of Origin USA (subject to change)
Coverage Area 5400 sf
Geotextile Type Nonwoven
Grab Tensile Strength 120 lb
Mass per Unit Area 4 oz/yd²
Permittivity 1.8 sec⁻¹
Polymer Type Polypropylene
Roll Length 360 ft
Roll Width 15 ft
Series 140N
Trapezoidal Tear Strength 50 lb
UV Resistance 70% @ 500 hr
Water Flow Rate 135 gpm/ft²
*
*
*
