Mirafi 140N Filter Fabric - by the Foot

Item #: I000902
Mfr. #: 140N
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $6.60
i h h

Description

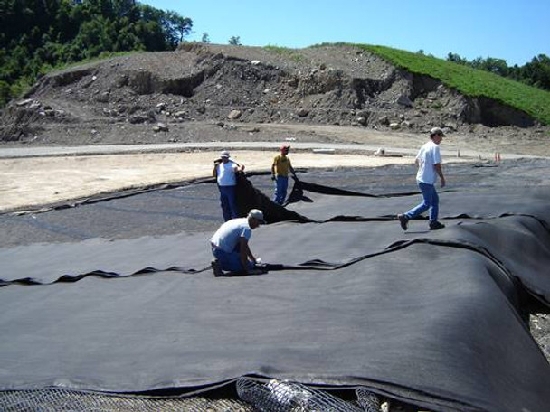

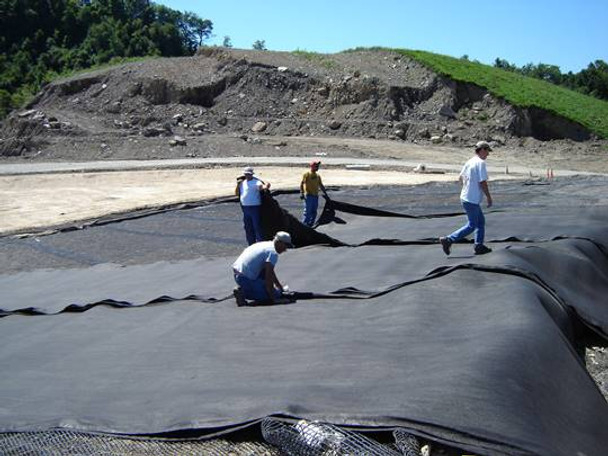

Mirafi® N-Series nonwoven polypropylene geotextiles are used for soil separation, drainage in Transportation, Building Site, and Water Infrastructure projects such as subsurface drainage, permanent erosion control and roadway separation applications. Mirafi® N-Series nonwovens combine high water flow rates, high soil interaction and durability while providing excellent soil particle retention.

Features

  • Construction: Mirafi ® N-Series polypropylene nonwoven geotextiles easily conform to the ground or trench surface for trouble free installation.
  • Strength: Mirafi ® N-Series geotextiles withstand installation stresses with high puncture and tear resistance.
  • Drainage: High permittivity properties provide high water flow rates while providing excellent soil retention.
  • Environmental: Mirafi ® N-Series geotextiles are chemically stable in a wide range of aggressive environments.
  • Cost Effective: Mirafi ® N-Series geotextiles provide economical solutions to many civil engineering applications including a cost effective alternative to graded aggregate filters.
Products specifications
Apparent Opening Size #70 sieve
Application Soil Separation/Filtration/Drainage, Sold by the linear foot
CBR Puncture Strength 310 lb
Certifications AASHTO M288 Compliant
Country of Origin USA (subject to change)
Geotextile Type Nonwoven
Grab Tensile Strength 120 lb
Mass per Unit Area 4 oz/yd²
Permittivity 1.8 sec⁻¹
Polymer Type Polypropylene
Series 140N
Trapezoidal Tear Strength 50 lb
UV Resistance 70% @ 500 hr
Water Flow Rate 135 gpm/ft²
*
*
*
