Multiquip Centrifugal Trash Pump 4"

Mfr.: Multiquip Inc
Item #: I096169
Mfr. #: QP4TH
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $5,151.00
i h h

Description

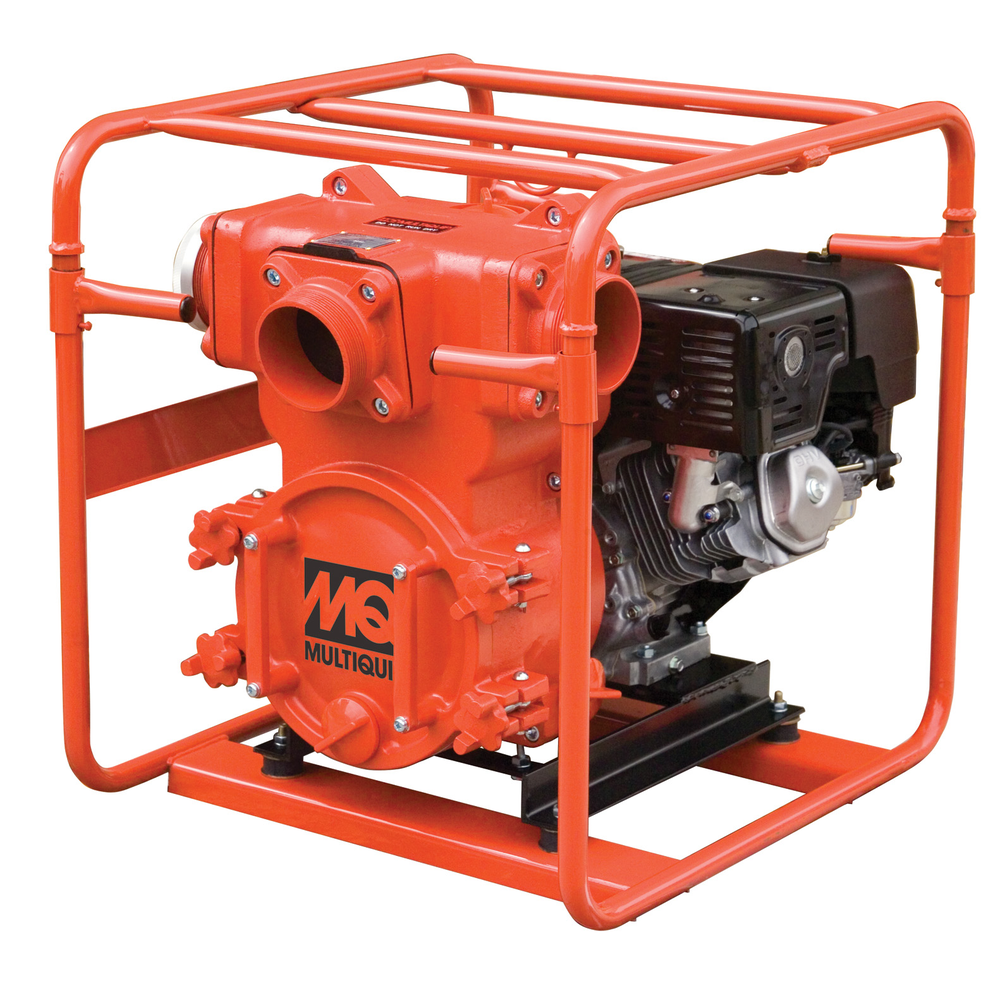

The QP4TH is a heavy-duty 4-inch trash pump designed for high-production dewatering on demanding job sites. Driven by a powerful Honda engine, it moves massive volumes of water while easily handling larger solids.
  • High output flow of 555 GPM
  • Handles solids up to 2 inches in diameter
  • Powered by a 10.7 HP Honda GX340 engine

Features

  • Left and right discharge ports for convenience
  • Cast iron open designed impeller and volute
  • Durable steel pipe-frame construction
  • Silicon/carbon mechanical seal system

Specifications


Port Size4 x 4 inMax Flow555 GPM
Max Head90 ftMax Solids2.0 in
EngineHonda GX340Weight216 lbs
Products specifications
Body Material Cast Iron
Certifications CARB Certified Engine, EPA Certified Engine
Country of Origin Varies (subject to change)
Discharge Port 4 in NPT
Engine Brand & Series Honda GX340
Engine Displacement 337 cc
Flow Rate 528 GPM
Frame Design Roll Cage
Fuel Tank Capacity 1.6 gal
Horsepower 10.7 HP
Ignition Type Recoil-Start
Impeller Design Semi-Open
Inlet Port 4 in NPT
Manufacturer's Warranty 1 Year Limited
Max Head 100 ft
Max Motor Speed 3600 RPM
Max Solid Size 1-7/8 in
Max Suction Lift 26 ft
Power Source Gas Engine
Pump Mechanism Centrifugal
Pump Type Trash Pump
Seal Material SiC/Carbon
Volute Material Cast Iron
*
*
*
