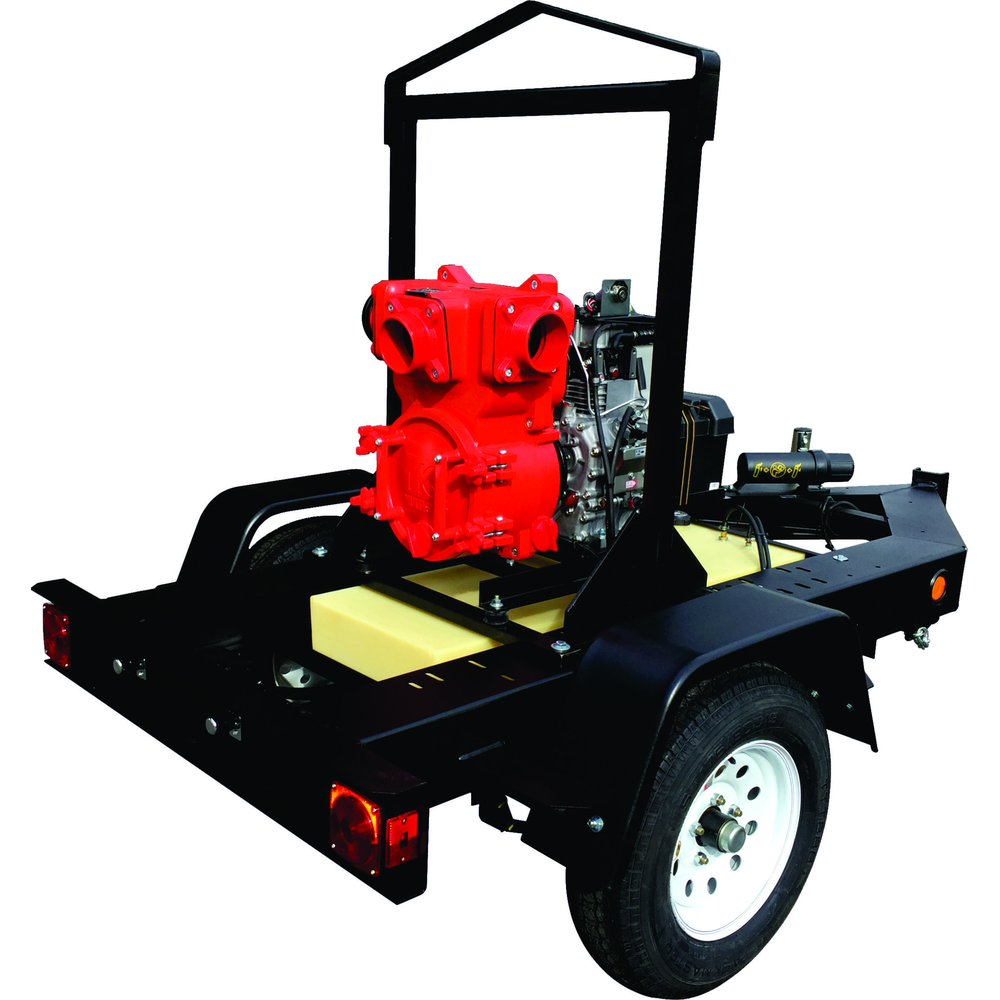

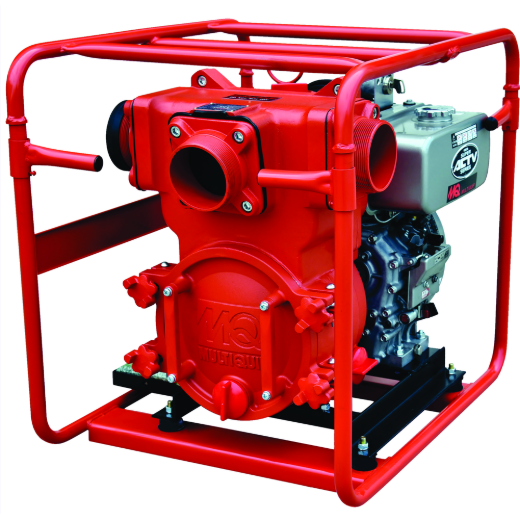

Multiquip Diesel Centrifugal Trash Pump 4"

Mfr.: Multiquip Inc
Item #: I096170
Mfr. #: QP4TK
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $8,716.90
i h h

Description

The QP4TK is a professional 4-inch diesel trash pump built for tough construction and industrial applications. Featuring a powerful Kubota engine, it provides consistent performance and high flow rates for debris-laden water.
  • 475 GPM maximum flow output
  • Powered by a 9.5 HP Kubota diesel engine
  • Handles solids up to 2 inches in diameter

Features

  • Equipped with convenient electric start
  • Abrasion-resistant 45 ductile iron impeller
  • Industrial grade aluminum die-cast housing
  • Tier IV Final EPA/CARB certified

Specifications


Port Size4 x 4 inMax Flow475 GPM
Max Head85 ftMax Solids2.0 in
EngineKubota OC95-E4Weight286 lbs
Products specifications
Body Material Cast Iron
Certifications EPA Tier 4 Final
Country of Origin Varies (subject to change)
Discharge Port 4 in NPT
Engine Brand & Series Yanmar L100 Diesel
Engine Displacement 435 cc
Flow Rate 528 GPM
Frame Design Roll Cage
Fuel Tank Capacity 1.5 gal
Horsepower 9 HP
Ignition Type Recoil-Start
Impeller Design Semi-Open
Inlet Port 4 in NPT
Manufacturer's Warranty 1 Year Limited
Max Head 100 ft
Max Motor Speed 3600 RPM
Max Solid Size 1-7/8 in
Max Suction Lift 26 ft
Power Source Diesel Engine
Pump Mechanism Centrifugal
Pump Type Trash Pump (Diesel)
Seal Material SiC/Carbon
Volute Material Cast Iron
*
*
*
