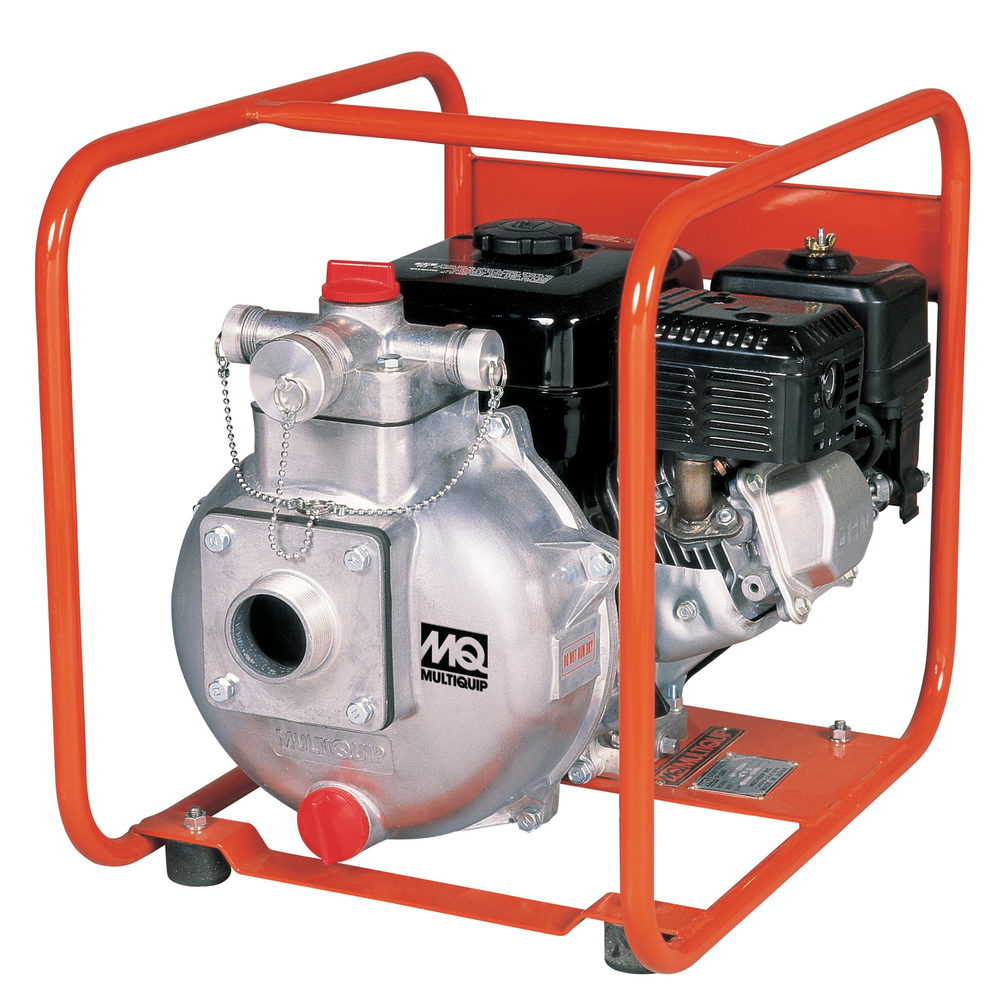

Multiquip High Pressure Centrifugal Pump 2"

Mfr.: Multiquip Inc
Item #: I096160
Mfr. #: QP205SH
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $1,645.63
i h h

Description

The QP205SH is a portable high-pressure centrifugal pump supported by a unique totally closed impeller and volute design. This 100 PSI system is perfect for high-pressure water jetting and standby fire fighting support.
  • Tri-port manifold provides 1 inch and 1.5 inch discharge
  • Delivers an impressive 230 feet of total head
  • Powered by a 4.8 HP Honda GX160 engine

Features

  • Specially engineered die-cast aluminum casing
  • 3-year pump end warranty for reliability
  • Includes tubular steel frame for protection
  • Ideal for challenging agricultural environments

Specifications


Port Size2 x 1 x 1.5 inMax Flow106 GPM
Max Head230 ftMax Pressure100 PSI
EngineHonda GX160Weight64 lbs
Products specifications
Body Material Cast Iron
Certifications CARB Certified Engine, EPA Certified Engine
Country of Origin Varies (subject to change)
Discharge Port 2 in NPT
Engine Brand & Series Honda GX270
Engine Displacement 270 cc
Flow Rate 152 GPM
Frame Design Roll Cage
Fuel Tank Capacity 1.6 gal
Horsepower 8.5 HP
Ignition Type Recoil-Start
Impeller Design Closed
Inlet Port 2 in NPT
Manufacturer's Warranty 1 Year Limited
Max Discharge Pressure 131 psi
Max Head 302 ft
Max Motor Speed 3600 RPM
Max Suction Lift 26 ft
Power Source Gas Engine
Pump Mechanism Centrifugal
Pump Type High Pressure Centrifugal
Seal Material SiC/Carbon
Volute Material Cast Iron
*
*
*
