SafeWaze 12" Post Anchor for Wood Steel Concrete

Mfr.: SafeWaze
Item #: I052131
Mfr. #: FS-EX325
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $346.47
i h h

Description

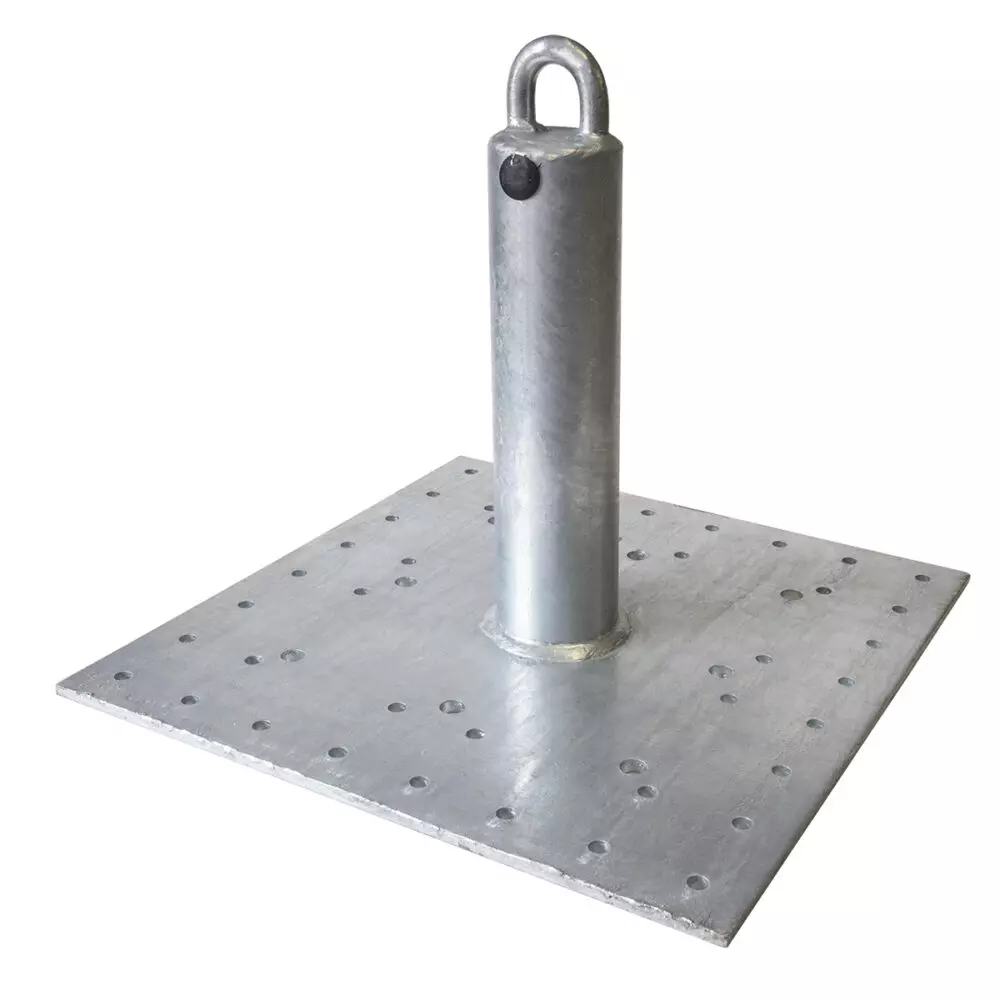

The Post Anchor is a fixed, permanent anchor used as a single point anchor or with a horizontal lifeline system. It can be installed on wood, steel or concrete structures.
  • Corrosion resistant galvanized coating
  • Minimum Breaking Strength: 5,000 lbs
  • ANSI Weight Capacity: 130-310 lbs
  • OSHA Weight Capacity: Up to 420 lbs

Features

  • For use on wood, steel, and concrete decks
  • Corrosion resistant galvanized coating
  • Permanent anchor
  • Can be used as single point anchor or with horizontal lifeline system

Specifications


MaterialsGalvanized steelWeight31.3 lbs (14.2 kg)

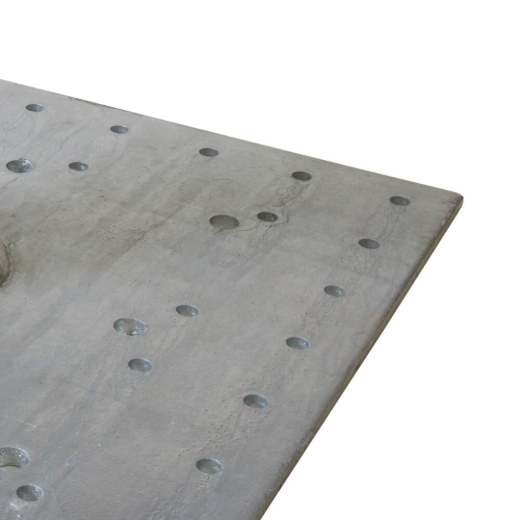

Baseplate16 inch x 16 inch (406 mm x 406 mm)Height14-1/2 inch (368 mm) from baseplate bottom to top of l
Minimum Breaking Strength5,000 lbsANSI Weight Capacity130-310 lbs (59-141 kg)
OSHA Weight CapacityUp to 420 lbs (191 kg)ANSI StandardsZ359.1, A10.32
OSHA Standards1926.502, 1910.140, 1910.66
*
*
*
