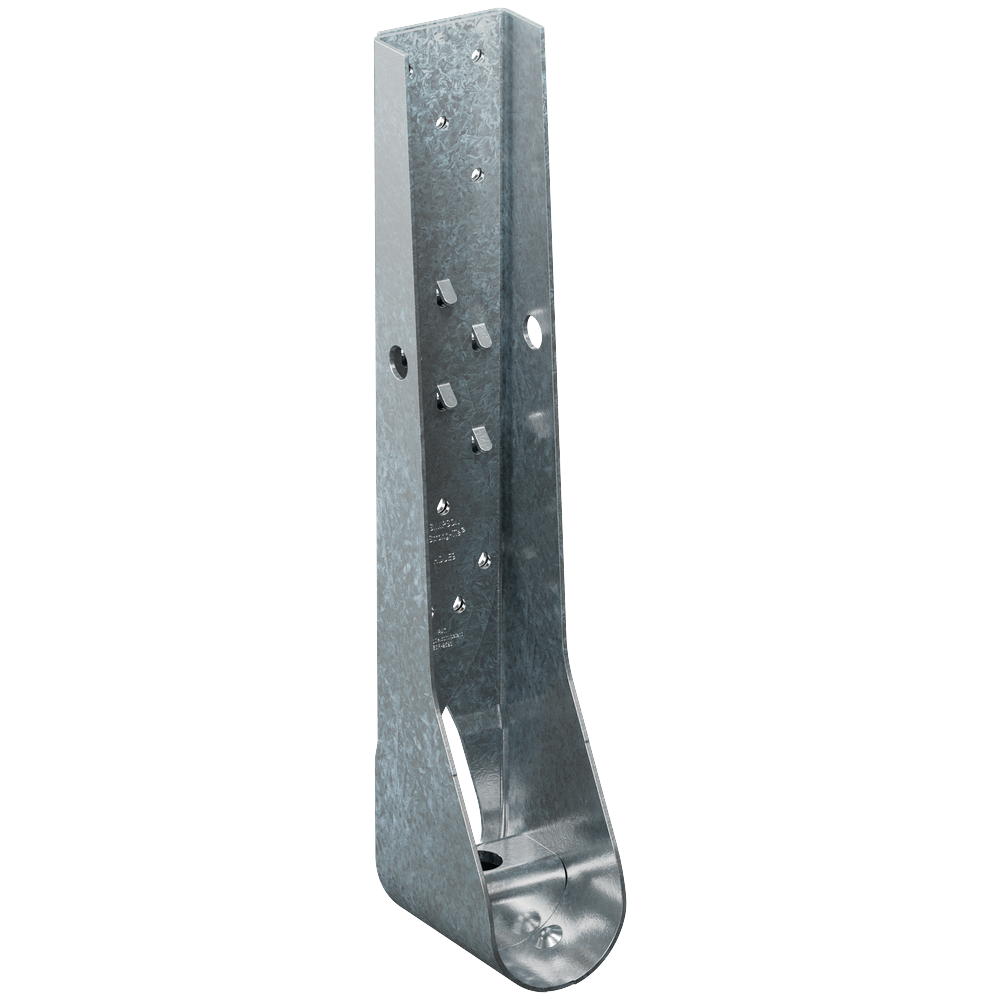

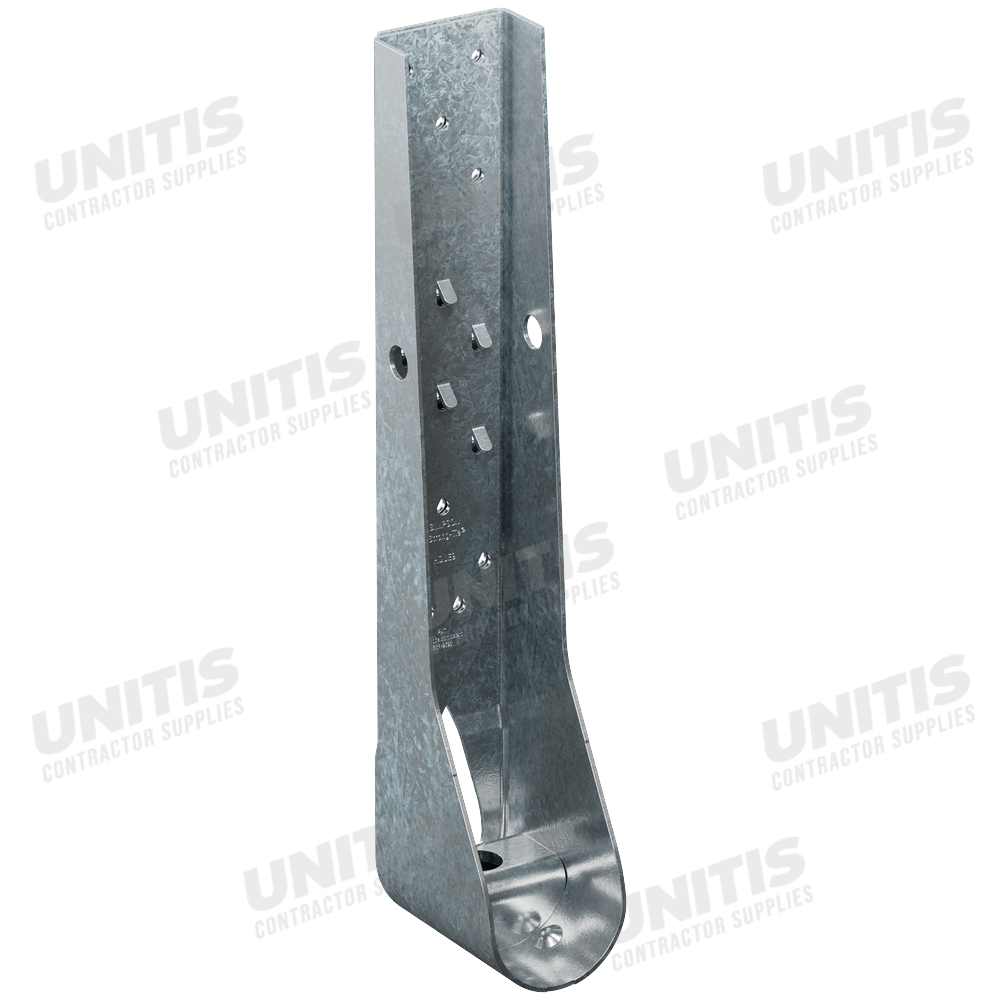

Simpson HDUE 17-3/8" Galvanized Predeflected Holdown with Strong-Drive SDS Screws

Mfr.: Simpson Strong-Tie
Item #: I093097
Mfr. #: HDUE9-SDS3.5
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $125.15
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

Galvanized predeflected holdown for resisting uplift loads, includes Strong-Drive SDS Heavy-Duty Connector screws and crescent washer.
  • 12 gauge steel
  • Zinc Galvanized, G90 coating
  • 17-3/8 inch height
  • 16 included screws

Features

  • Predeflected design for improved load performance
  • Installs with perpendicular and angled screws
  • Accommodates 7/8 inch anchor bolt
  • Allows for both wind and earthquake loading

Includes

  • 16 Strong-Drive SDS Heavy-Duty Connector screws (1/4 in. x 3-1/2 in.)
  • 1 crescent washer

Specifications


Gauge12Width (W)3 inch
Height (H)17-3/8 inchBase (B)4-5/16 inch
CL1-7/16 inchSO1-1/2 inch
CoatingZinc Galvanized, G90Anchor Bolt Diameter7/8 inch
Wood Fasteners(16) 1/4 inch x 3-1/2 inch SDSMinimum Wood Member Size3-1/2 inch x 3-1/2 inch
Allowable Tension Load (DFSP)8425 lbAllowable Tension Load (SPFHF)7305 lb
Deflection at Allowable Load0.159 inch
*
*
*
