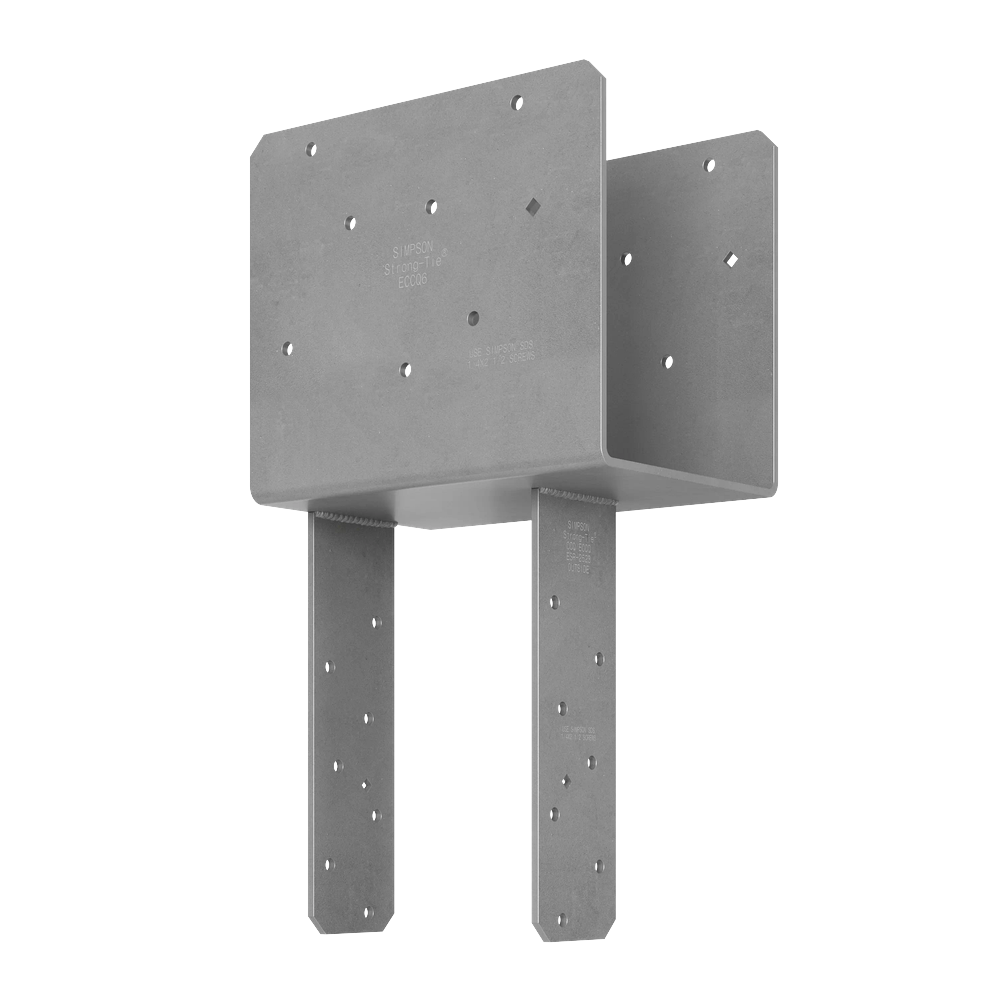

Simpson ECCQ 8x6 End Column Cap with SDS Screws

Mfr.: Simpson Strong-Tie
Item #: I092872
Mfr. #: ECCQ86SDS2.5
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $385.41
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The ECCQ86SDS2.5 is a 7-1/2 inch beam width end column cap designed for post-to-beam connections, featuring quick-install with SDS screws. It provides uplift and down load capacities for structural applications.
  • Beam Width: 7-1/2 in.
  • Dimensions: W1=7-1/2 inch, W2=7-1/2 inch, L=5-1/2 inch, H=8-1/2 inch
  • Includes 14 SDS screws (1/4 inch x 2-1/2 inch)
  • Allowable Uplift Load: 5,355 lb
  • Allowable Down Load: 25,780 lb

Features

  • Quick-install design with pre-installed SDS screws
  • Suitable for Douglas Fir and Southern Pine (DF/SP)
  • Beam depth minimum 7 inch
  • Corrosion protection options available

Includes

  • 1 ECCQ86SDS2.5 end column cap
  • 14 SDS screws (1/4 inch x 2-1/2 inch)

Specifications


ModelECCQ86SDS2.5Beam Width (in.)7-1/2
W1 (in.)7-1/2W2 (in.)7-1/2
L (in.)5-1/2H (in.)8-1/2
No. of SDS Screws14Uplift Load (lb)5355
Down Load (lb)25780
*
*
*
