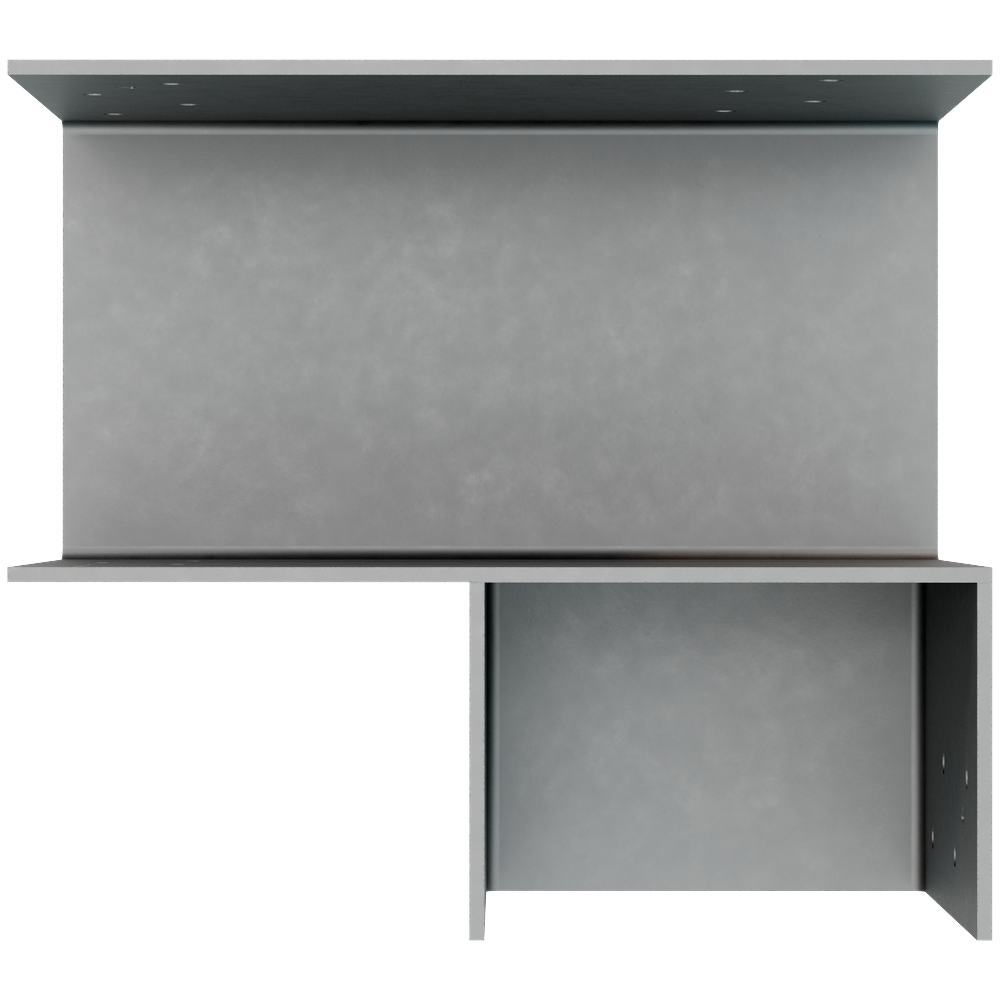

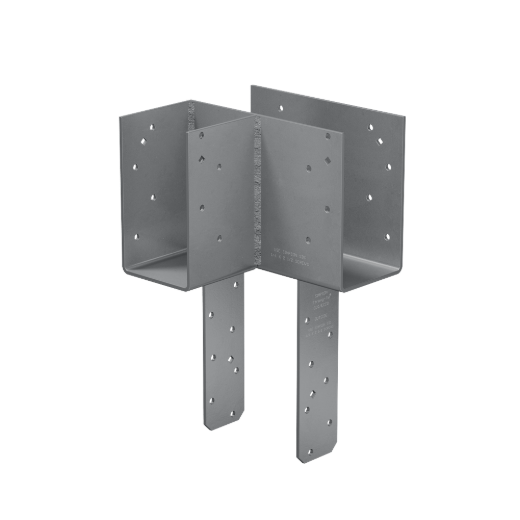

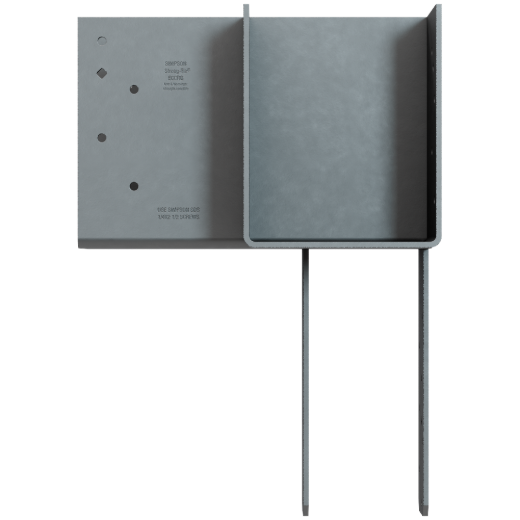

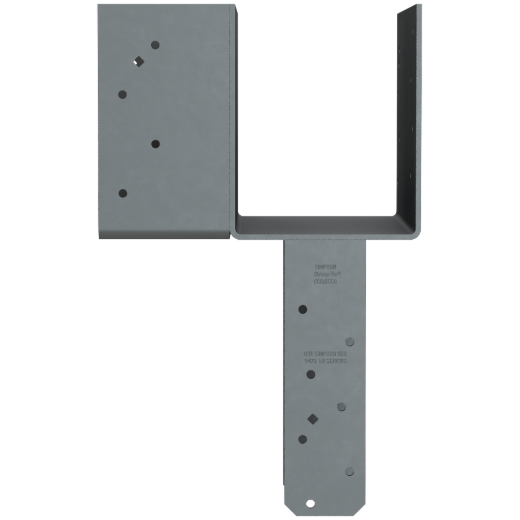

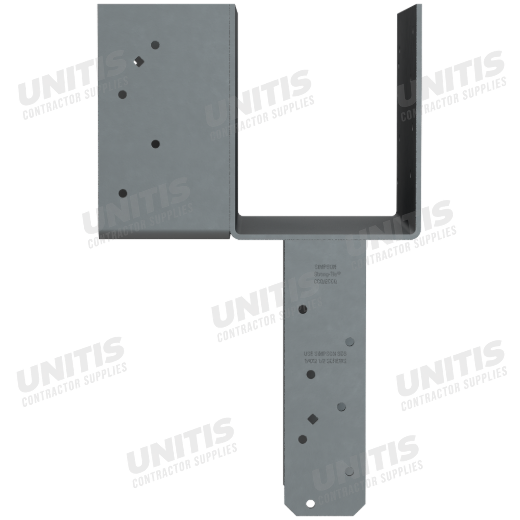

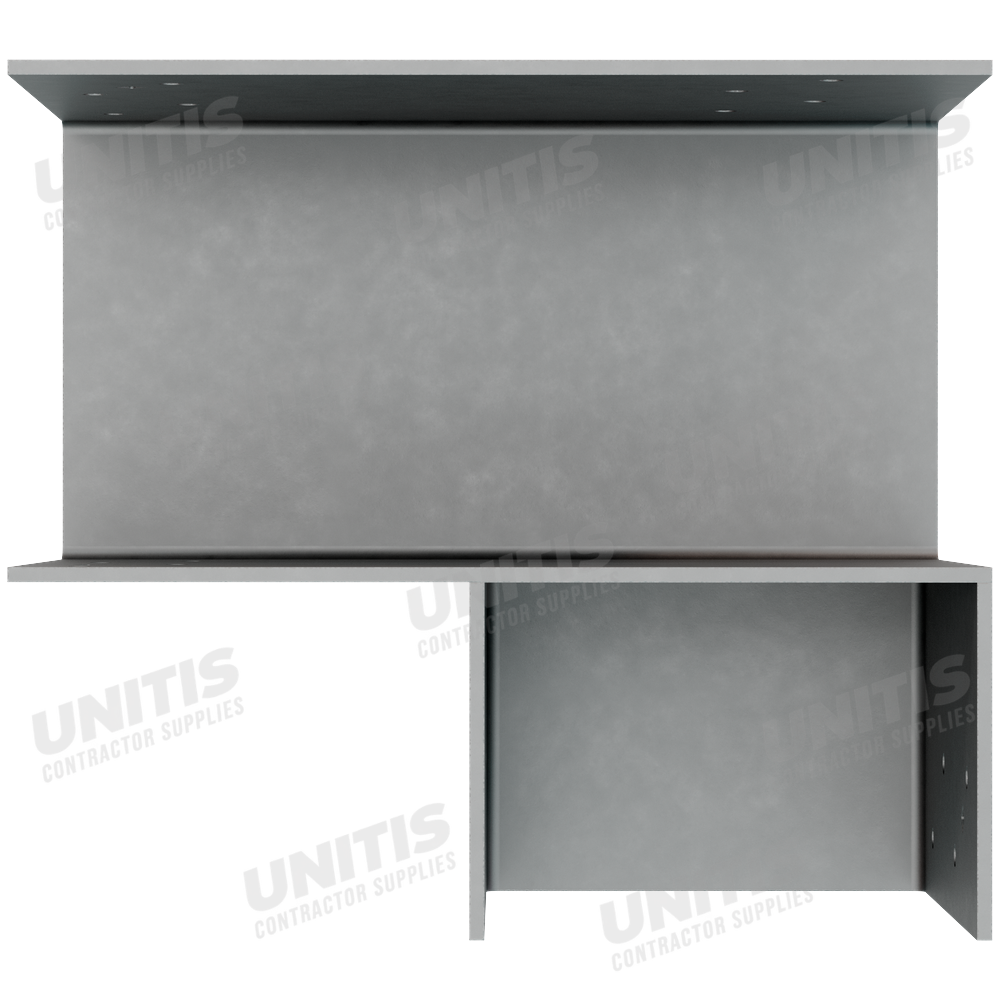

Simpson ECCLRQ L-Shape End Column Cap for 6x Beams, 6x Post w/ SDS Screws, Skewed Right

Mfr.: Simpson Strong-Tie
Item #: I092764
Mfr. #: ECCLRQ666SDS
*
Pickup at Corona | Change Delivering to 92111 | Change

Price: $718.79
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

The Simpson Strong-Tie ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an 'L' formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. The ECCLQ uses Strong-Drive SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts. The ECCLQ is available in left- or right-side beam orientations.
  • Screws are configured to provide high uplift design values
  • Certified welds for confidence in strength and loading
  • Diamond holes to provide temporary fastening
  • Right direction; order ECCLLQ model for left direction
  • Nominal member sizes: 6x main beam, 6x post, 6x side beam
  • Made from 7-gauge steel

Features

  • Screws are configured to provide high uplift design values
  • Certified welds for confidence in strength and loading
  • Diamond holes to provide temporary fastening
  • Right direction; order ECCLLQ model for left direction
  • Nominal member sizes: 6x main beam, 6x post, 6x side beam
  • Made from 7-gauge steel

Specifications


Material7-gauge steelNominal Member Sizes6x main beam, 6x post, 6x side beam
OrientationRight direction (order ECCLLQ for left)
*
*
*
