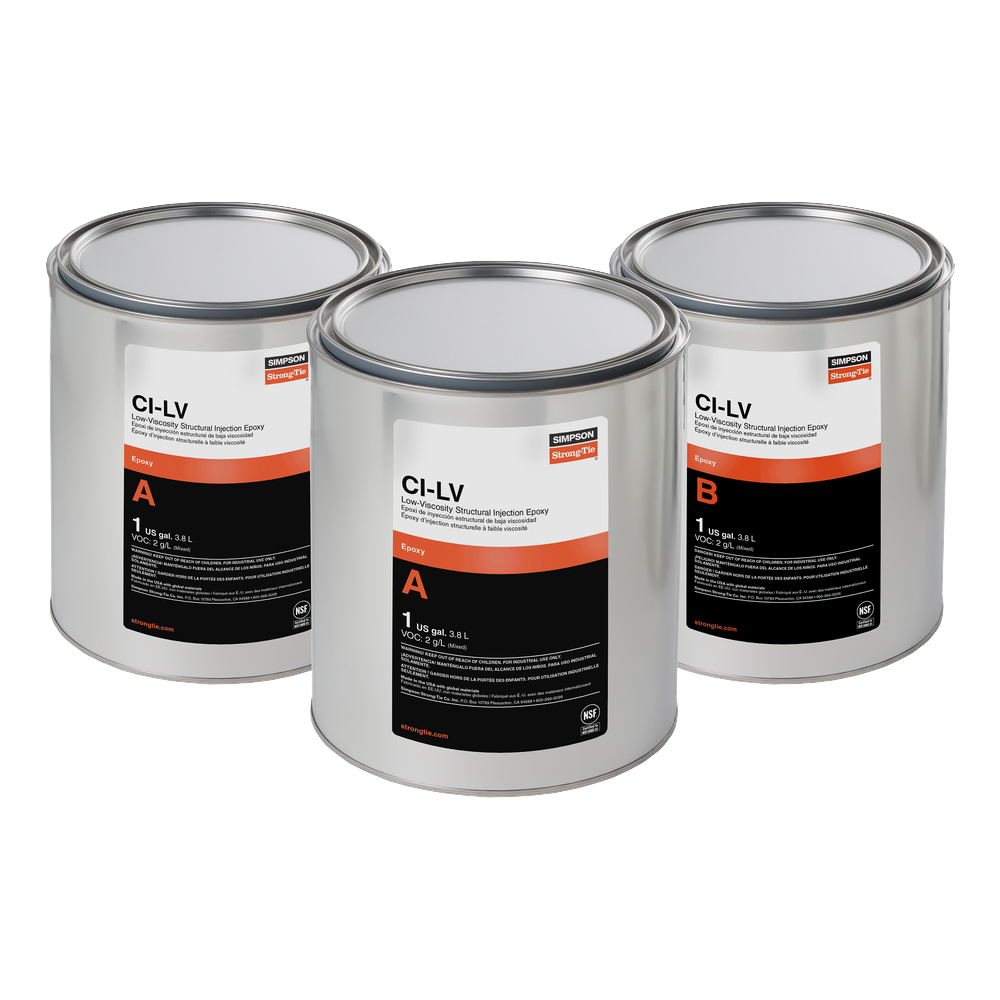

Simpson CI-LV Low-Viscosity Structural Injection Epoxy (3-gal. Kit)

Mfr.: Simpson Strong-Tie
Item #: I092440
Mfr. #: CILV3KT
*
Pickup at San Diego | Change Delivering to 92111 | Change

Price: $453.50
i h h
WARNING: California Prop 65 : Cancer and Reproductive Harm - http://www.P65Warnings.ca.gov

Description

CI-LV Low-Viscosity Structural Injection Epoxy is a two-component, high-modulus, high-solids, moisture-tolerant epoxy specially designed for pressure injection, gravity feeding and flood coat filling of concrete cracks and for increasing the bond between freshly placed repair mortars or concrete mixes and existing concrete when substrate temperatures are between 40F (4C)-90F (32C). Available in 3-gallon bulk kits or convenient side-by-side cartridges dispensed through a static mixing nozzle using either a manual or pneumatic dispensing tool.
  • Meets ASTM C881 & AASHTO M235, Type I/II, Grade 1, Class B and Type I/IV and II/V, Grade 1, Class C
  • Approved under NSF/ANSI Standard 61 (379 in.2 /1,000 gal.)
  • Chemically bonds with concrete to provide structural repair and seal cracks from moisture
  • Moisture-tolerant; can be used on dry and damp surfaces
  • Low surface tension for effective penetration into narrow cracks
  • Formulated for maximum penetration under pressure
  • Suitable for pressure injection or gravity-feed applications

Features

  • Meets the requirements of ASTM C881 & AASHTO M235, Type I/II, Grade 1, Class B and ASTM C881 & AASHTO M235, Type I/IV and II/V, Grade 1, Class C and approved under NSF/ANSI Standard 61 (379 in.2 /1,000 gal.)
  • Chemically bonds with the concrete to provide a structural repair; CI-LV seals the crack from moisture, protecting rebar in the concrete from corrosion
  • Moisture-tolerant; can be used on dry and damp surfaces
  • Low surface tension allows the material to effectively penetrate narrow cracks
  • Formulated for maximum penetration under pressure
  • Suitable for pressure injection or gravity-feed applications

Includes

  • 3-gallon bulk kits
  • Side-by-side cartridges dispensed through a static mixing nozzle using either a manual or pneumatic dispensing tool

Specifications


TypeTwo-component, high-modulus, high-solids, moistureSubstrate Temperature Range40 degF (4 degC)-90 degF (32 degC)
StandardsASTM C881 & AASHTO M235, Type I/II, Grade 1, Class
*
*
*
