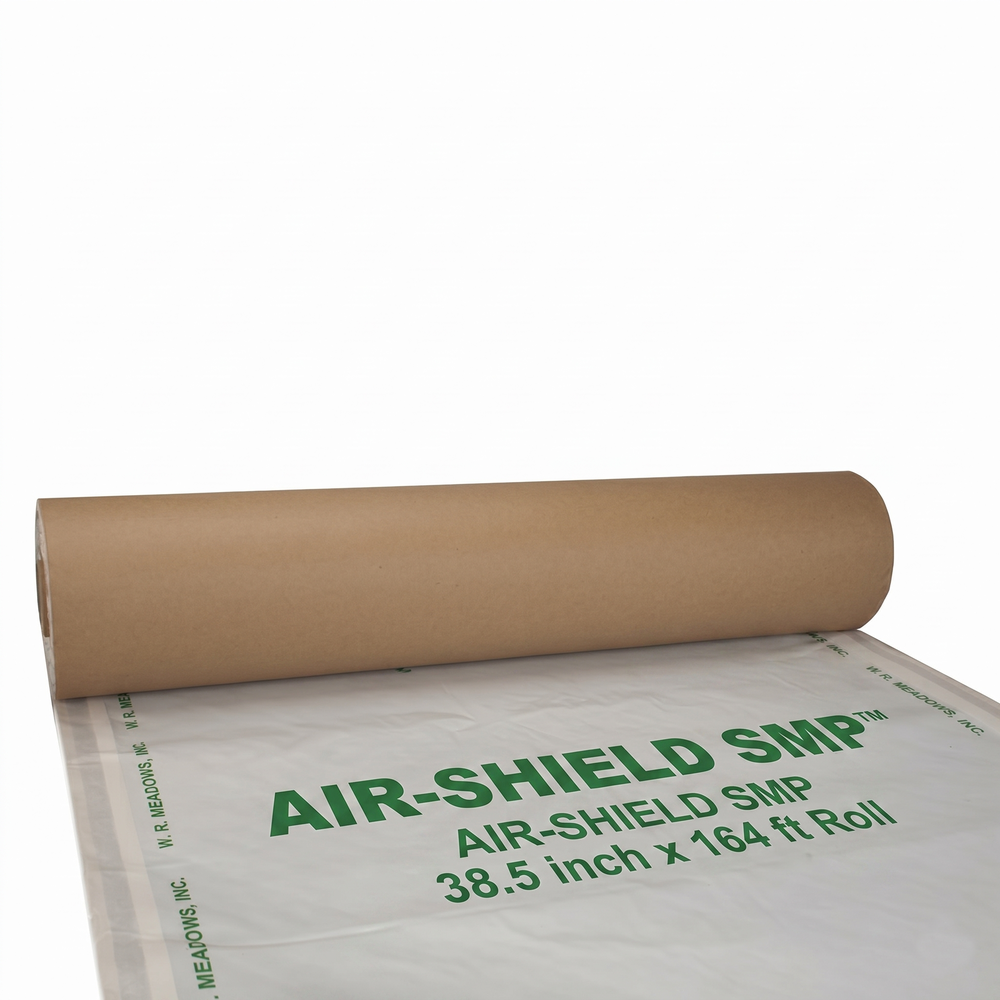

WR Meadows AIR-SHIELD SMP - 38.5" x 164' Roll

Mfr.: WR Meadows
Item #: I100720
Mfr. #: 5180139
*
Pickup at San Diego | Change Delivering to 92111 | Change

Digital Downloads
Price: $2,034.72
i h h

Description

AIR-SHIELD SMP is a self-adhering, vapor-permeable sheet membrane air barrier that bonds directly to the substrate without primer or adhesive. It prevents air and liquid water intrusion while allowing vapor to escape, helping wall systems stay dry and energy efficient.
  • Self-adhering, vapor-permeable air barrier
  • Bonds to concrete, masonry, sheathing, metal, plywood without primer
  • Class A fire performance and high vapor permeability
  • ABAA and ASTM compliant
  • Installs cleanly across wide temperature range

Features

  • Helps reduce air and moisture intrusion
  • Bonds easily and securely to a variety of building materials - no primer required
  • High vapor permeability - allows transmission of moisture vapor
  • Highly flexible - bridges cracks in substrate
  • Tough, durable membrane resists punctures and tears

Includes

  • 1 roll of AIR-SHIELD SMP

Specifications


Roll Length164 (50 m)Roll Width38.5 inch (980 mm)
Roll Weight53 lb. (24 kg)Mil Thickness26 Mils
Requires PrimerNOInstallation Temperature14 deg to 140 deg F (-10 deg to 60 deg C)
Service Temperature-40 deg F to 212 deg F (-40 deg to 100 deg C)Water ResistancePass
Air Permeance<0.004 cfm/ft2 @ 75 PaAir Leakage<0.04 cfm/ft2 @ 75 Pa
Vapor Permeance (A)41 permsVapor Permeance (B)54 perms
Peel AdhesionPassTensile Strength MD50 lbf/in (5.64 N/m)
Tensile Strength XD30 lbf/in (3.39 N/m)Flame SpreadClass A
Smoke Development IndexClass ALow Temperature FlexibilityPass
Nail PenetrationPass
*
*
*
