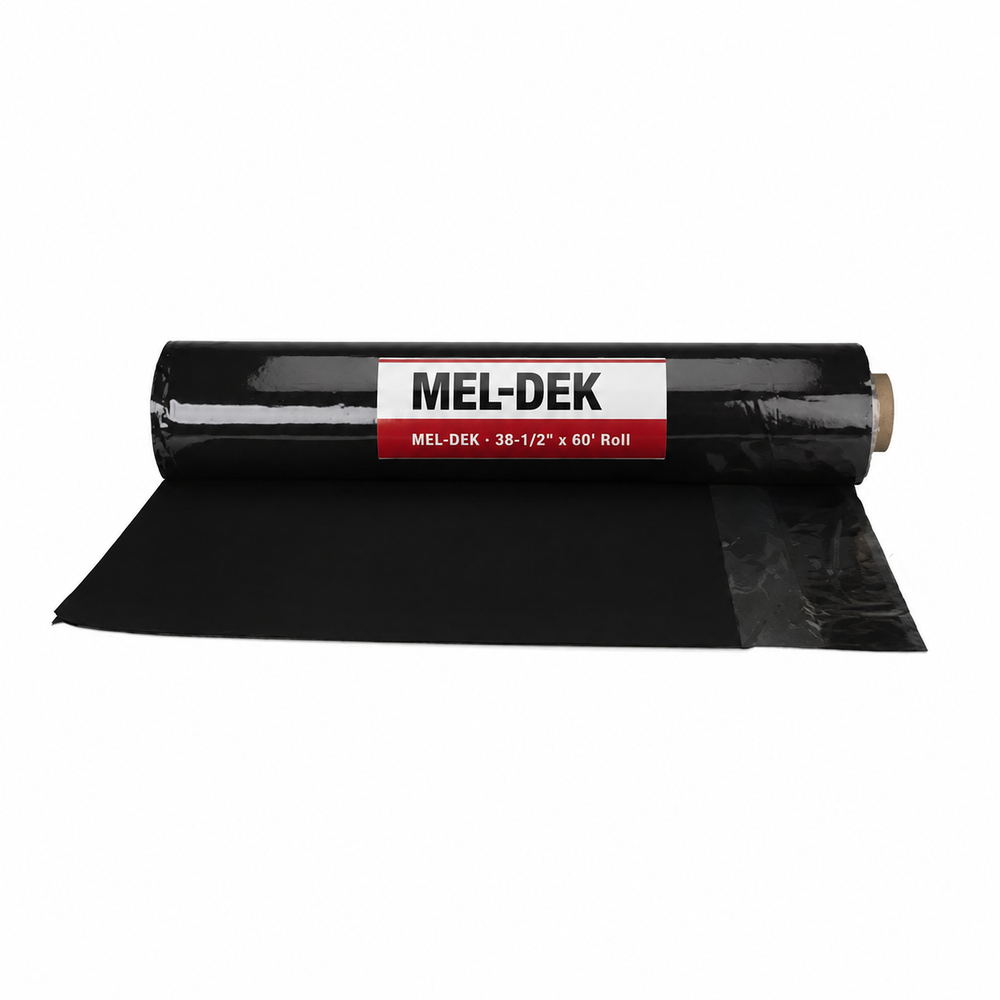

WR Meadows MEL-DEK - 38-1/2" x 60' Roll

Mfr.: WR Meadows
Item #: I100873
Mfr. #: 5112060
*
Pickup at San Diego | Change Delivering to 92111 | Change

Digital Downloads
Price: $505.39
i h h

Description

MEL-DEK is a 65-mil roll-applied deck waterproofing membrane for bridges, parking decks, and other vehicular traffic structures receiving an asphalt concrete overlay. It is a composite membrane of polymeric waterproofing layer and polypropylene woven fabric.
  • 65 mil thickness
  • Roll size: 38.5 inch x 60'
  • Effective coverage: 180 ft2 per roll
  • Withstands hot asphalt placement without protection course
  • Meets ASTM D6153, Type III

Features

  • Requires no protection course; withstands hot asphalt overlay placement
  • Provides 3/4 inch membrane-to-membrane weld at seams for monolithic protection
  • Flexible, dependable, cost-effective, easy to install
  • Suitable for new construction, repair, and maintenance
  • Compatible with asphalt overlays

Specifications


Thickness65 milsWater Vapor Permeance0.10 perms
Tensile Strength (MD)1616 psiTensile Strength (CMD)1476 psi
Elongation at Break (MD)1468%Elongation at Break (CMD)1659%
Puncture Resistance243 lbfLow Temp PliabilityNo cracking at -15 degF
Penetration @ 25C77 dmmSoftening Point200 degF
Apparent Viscosity1300 cPsRoll Width38.5 inch
Roll Length60Effective Coverage180 ft2
Gross Coverage192.5 ft2StandardASTM D6153, Type III
*
*
*
