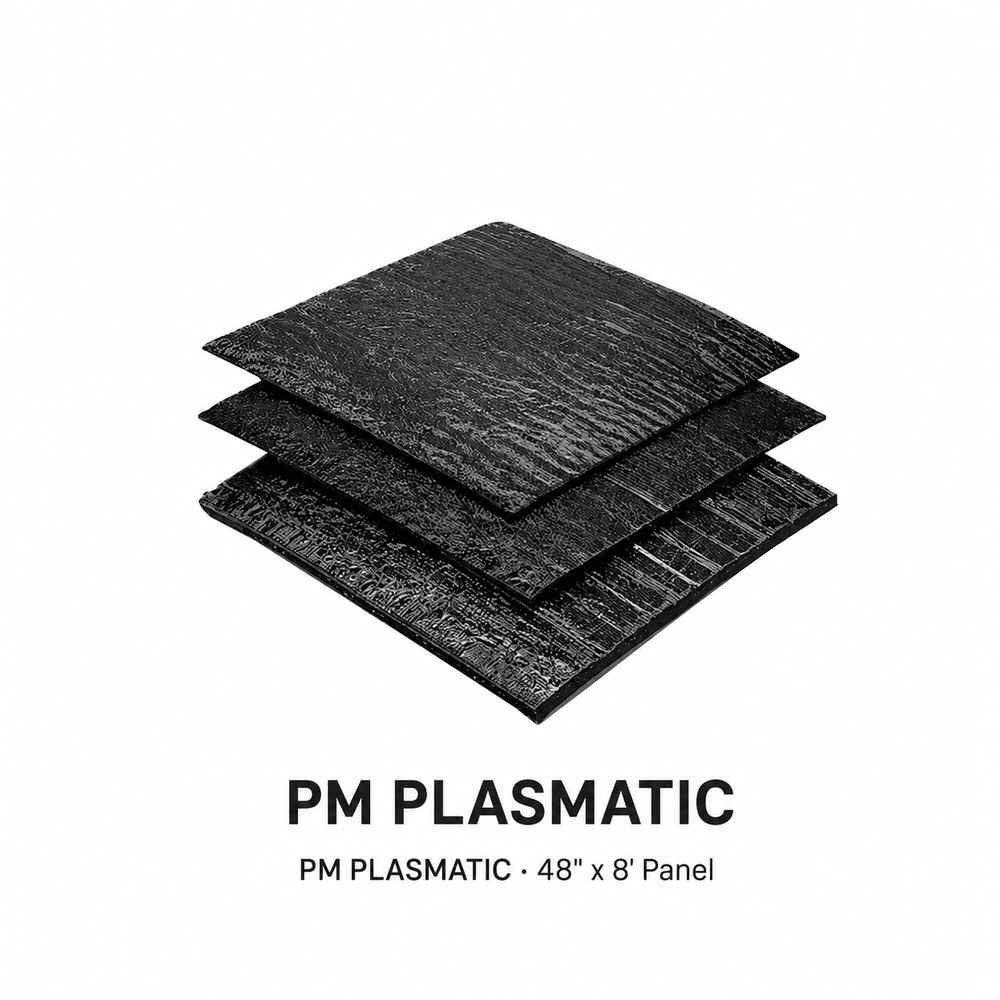

WR Meadows PM PLASMATIC - 48" x 8' Panel

Mfr.: WR Meadows
Item #: I101135
Mfr. #: 5210480080
*
Pickup at San Diego | Change Delivering to 92111 | Change

Digital Downloads
Price: $94.26
i h h

Description

VIBRAFLEX is a semi-rigid asphaltic panel used as a protection course over waterproofing membranes on bridge decks and similar structures. It installs dry without hot mopping or adhesives and is compatible with various waterproofing systems.
  • Large 4' x 8' panels minimize joints and speed installation
  • Dual-layer installation complies with AREMA Chapter 9
  • Proven by more than three decades of field performance

Features

  • Multi-ply panel with mineral-fortified asphalt core reinforced with felt and fiberglass
  • Dry installation, no hot mopping or adhesives needed
  • Compatible with liquid-applied, sheet, and built-up waterproofing systems
  • Flexible dual-layer installation for maximum membrane protection
  • Factory-applied weather-coated surface for controlled ballast penetration

Specifications


Thickness3/8 inch (9.53 mm) or 1/2 inch (12.7 mm)Panel Size4 x 8 (1.22 m x 2.44 m)
Weight per 100 ft2260 lbs (117.94 kg) for 3/8 inch, 350 lbs (158.76 kg)ColorBlack
*
*
*
