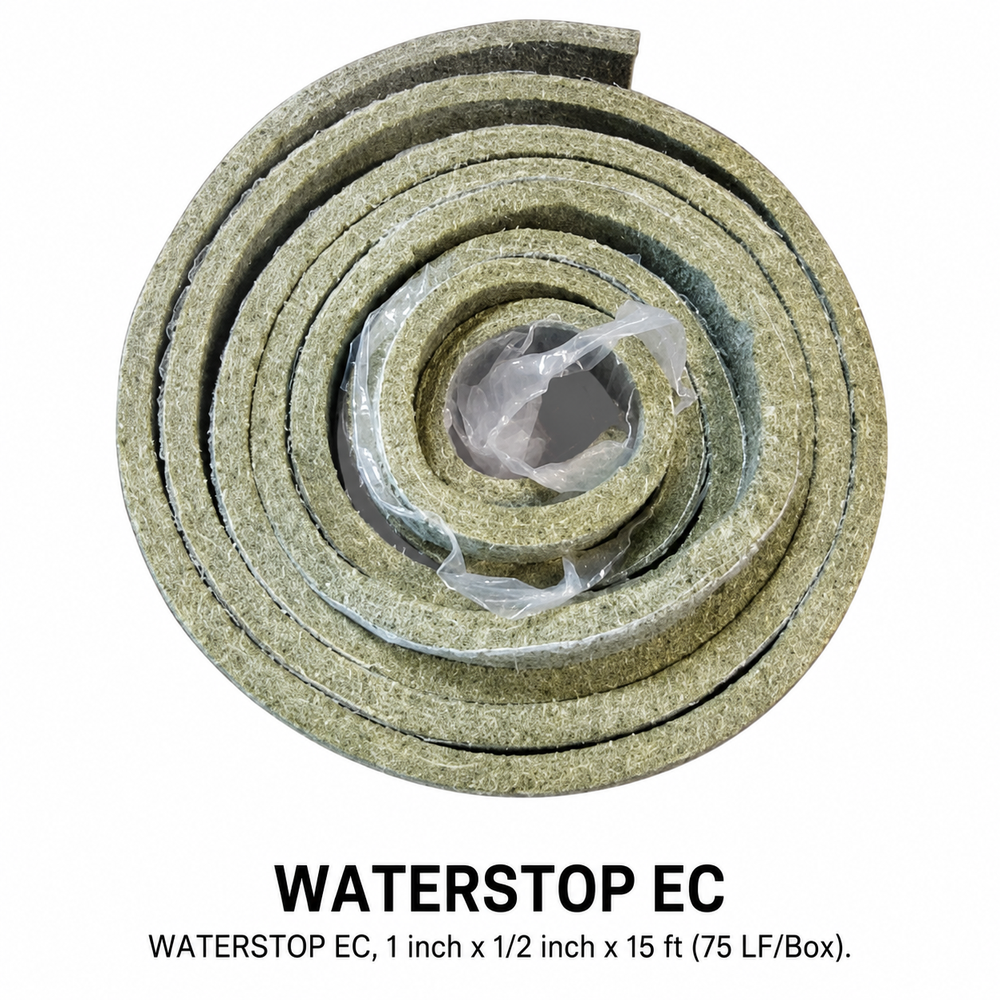

WR Meadows WATERSTOP EC - 1" x 1/2" x 15' (75 LF/Box)

Mfr.: WR Meadows
Item #: I100994
Mfr. #: 5124050
*
Pickup at Corona | Change Delivering to 92111 | Change

Digital Downloads
Price: $413.73
i h h

Description

WATERSTOP EC is a bentonite-based hydrophilic waterstop designed to seal non-moving construction joints and limit water migration through concrete. It contains a protected bentonite core that swells upon contact with water, filling small gaps along the joint.
  • Bentonite-based hydrophilic waterstop
  • Multilayered design with polypropylene fabric and tear-resistant netting
  • Delayed swell properties for controlled expansion
  • Suitable for high water head conditions

Features

  • Provides both extreme free swell and delayed swell properties
  • Additional strength and structure from multilayered design
  • High expansion properties seal open areas in concrete surface
  • Superior performance over life expectancy of structure

Specifications


Size1/2 inch x 1 inch x 15Packaging75 LF per box
Weight0.25 lb./linear footTear Strength (Membrane)75 lb. (333 N)
Elongation at Break>150%Unrestricted Expansion300% over 4 days
Installation Temperatures-15 deg to 120 degF (-25 deg to 50 degC)Resistance to Hydrostatic Head100 (30 m) of water
Vapor Permeability1 x 10^-9 cm per sec
*
*
*
