Greenstreak Model SDP01 Speed Dowel Plus 3/4" Red, 140 pcs per carton, priced per carton

Mfr.: Greenstreak -Sika
Item #: I101552
Mfr. #: 730931
*
Pickup at San Diego | Change Delivering to 92111 | Change

Digital Downloads
Price: $569.44
i h h

Description

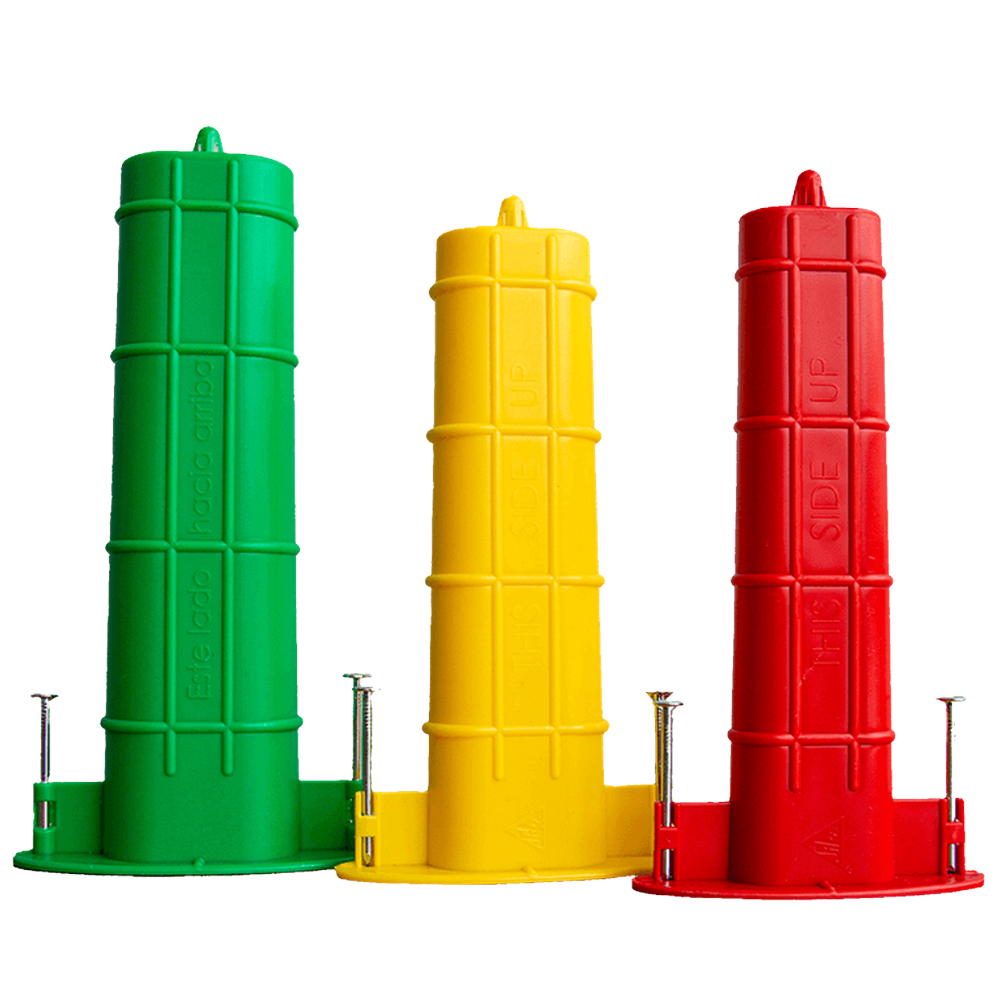

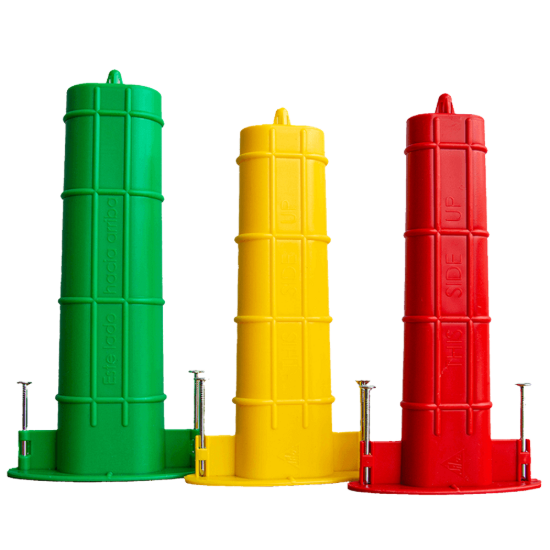

The Greenstreak Model SDP01 Sika Speed Dowel Plus is a 3/4 inch round slip dowel installation system that provides load transfer across construction joints while accommodating lateral and axial movement from concrete shrinkage and differential slab movement. Its integral, patented sleeve fins eliminate lateral restraint between concrete sections, and the one-piece design includes alignment marks and preinstalled nails for quick installation. Color-coded red for the 3/4 inch size.
  • 3/4 inch x 14 inch smooth dowel system, color-coded red
  • Integral, patented sleeve fins eliminate lateral restraint between concrete sections
  • One-piece design with alignment marks and preinstalled nails
  • No form drilling, greasing, spinning, removing, or replacing of dowels

Features

  • Accommodates lateral and axial movement from shrinkage
  • Compliant with ACI 302, ACI 330, and ACI 360
  • 100% polypropylene; sleeve thickness 0.083 inch
  • Compression resistance 5,500-8,000 PSI (ASTM D-695)
  • 140 pieces per carton
  • No expiration; store in cool, dry warehouse conditions

Specifications


ModelSDP01Dowel Size3/4 inch x 14 inch smooth
ColorRedSleeve Thickness0.083 inch
Material100% polypropyleneCompression Resistance5,500-8,000 PSI (ASTM D-695)
StandardsACI 302, ACI 330, ACI 360Pieces per Carton140
Shelf LifeNo expiration (cool, dry storage)PricingPer carton
*
*
*
